Aluminium Wheel Guards and 750mm Side Toolboxes Combo Package (Silver – Rope Rail Version)

$1,000.00 inc GST

Kylin Campers offers a great range of UTE canopies, UTE undertray drawers, UTE truck toolboxes, canopy accessories, caravan & camper trailer parts, 4×4 accessories.


Silver Aluminium Mudguards and 750 mm Single Tapered Side Toolboxes Combo (Rope Rail version) Package

Ute Tray Wheel Guard, Wheel Arch, Mudguard. Ute Under Tray Toolboxes, Side Toolboxes, Tapered Toolboxes.

Your favourite package deal is here! Includes a pair of our signature ute tray mudguards and a set of tapered toolboxes! All made of 5052 marine grade alloy, they are tough and stylish. This whole set will transform the look of your tray from head to toe and offer you the complete Kylin Style!

In stock


Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

Categories: ,

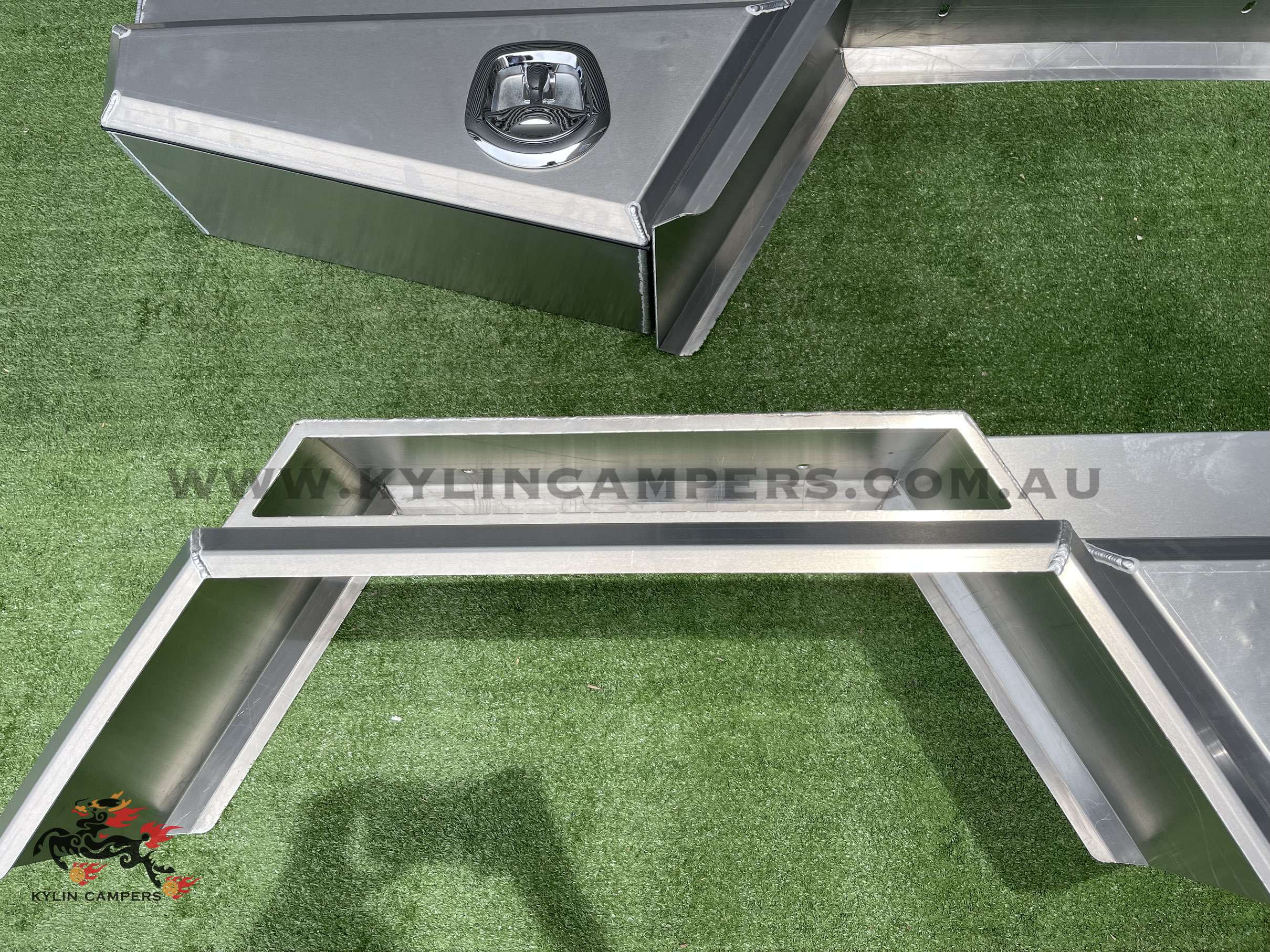

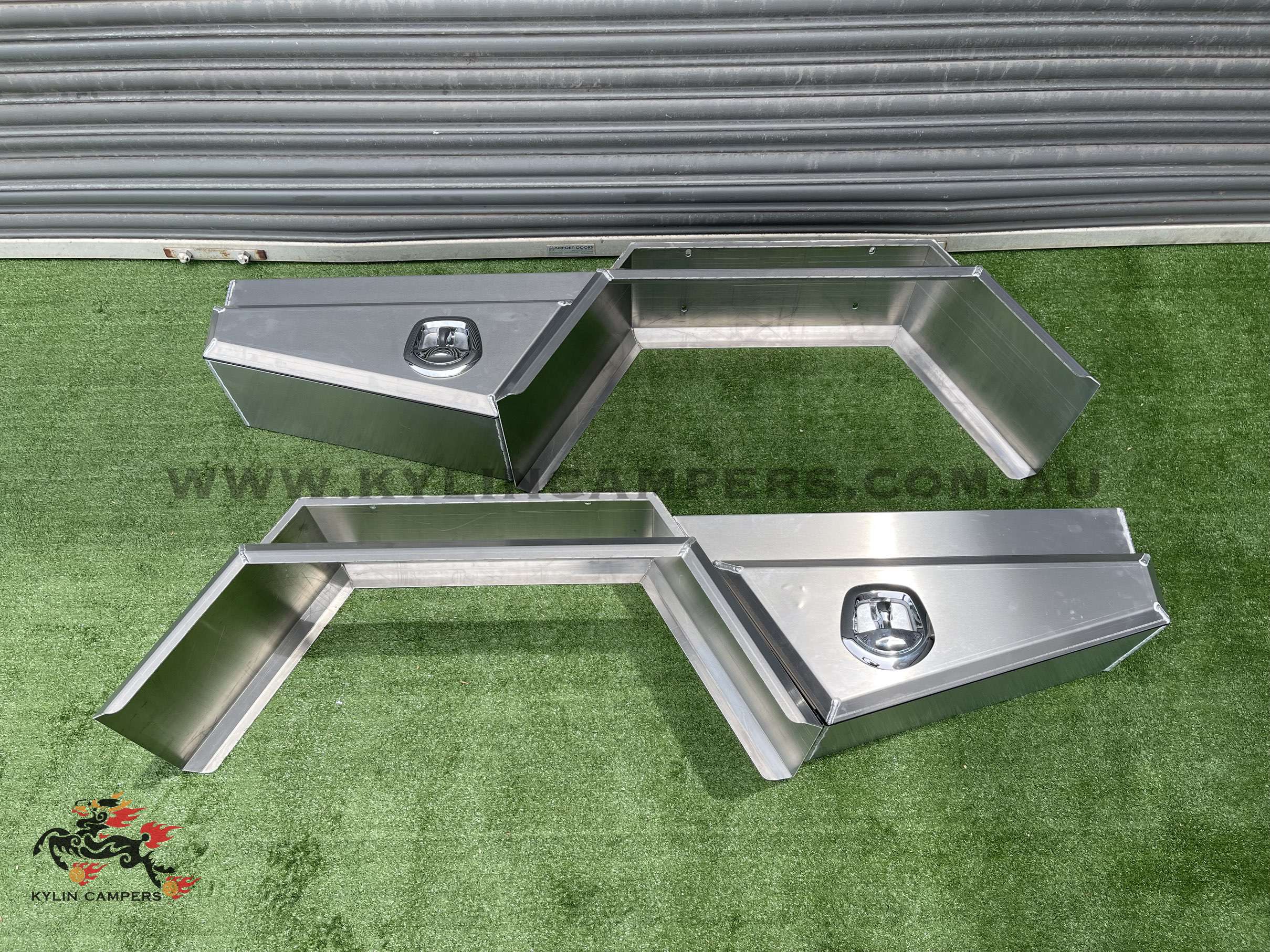

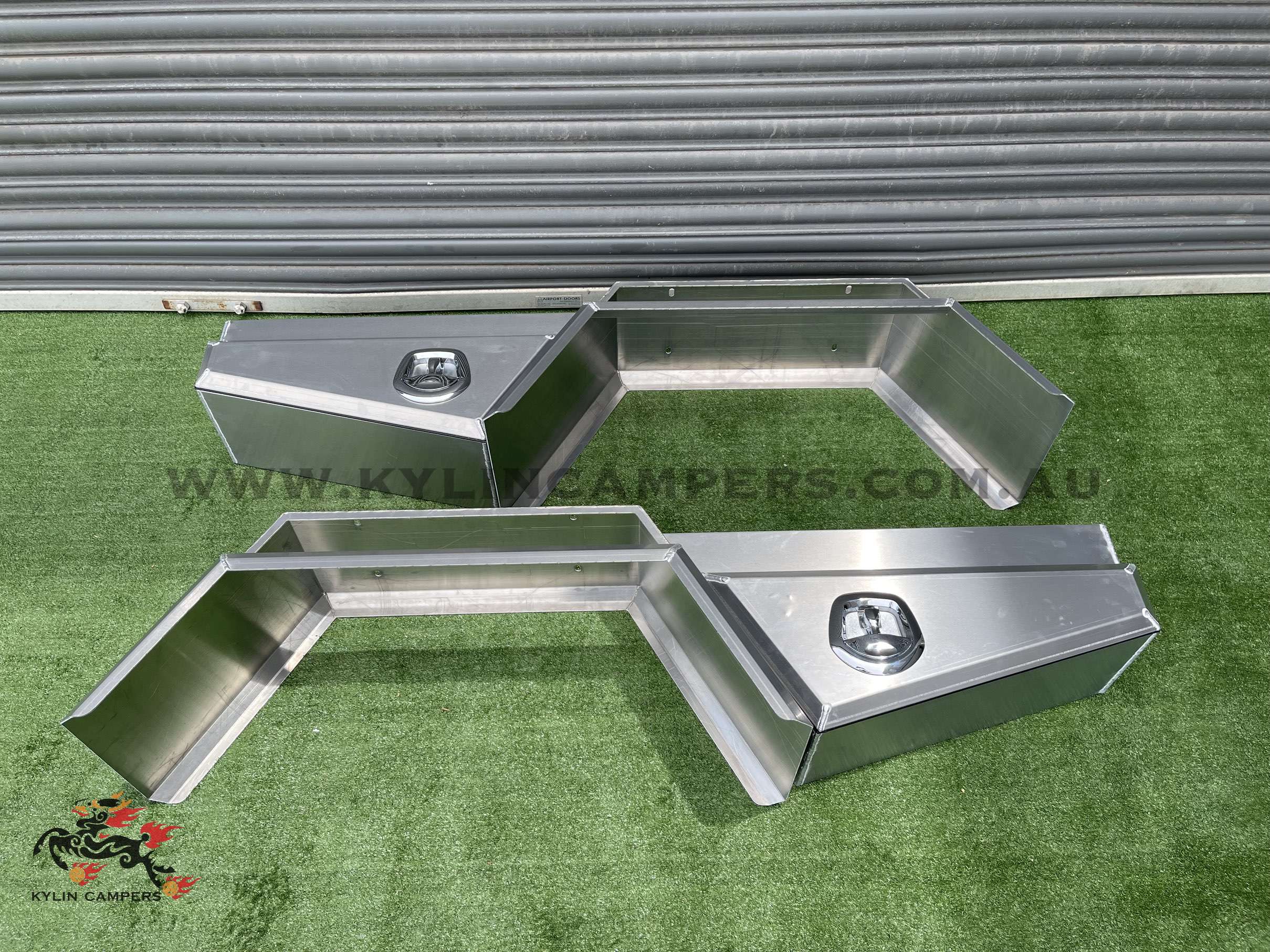

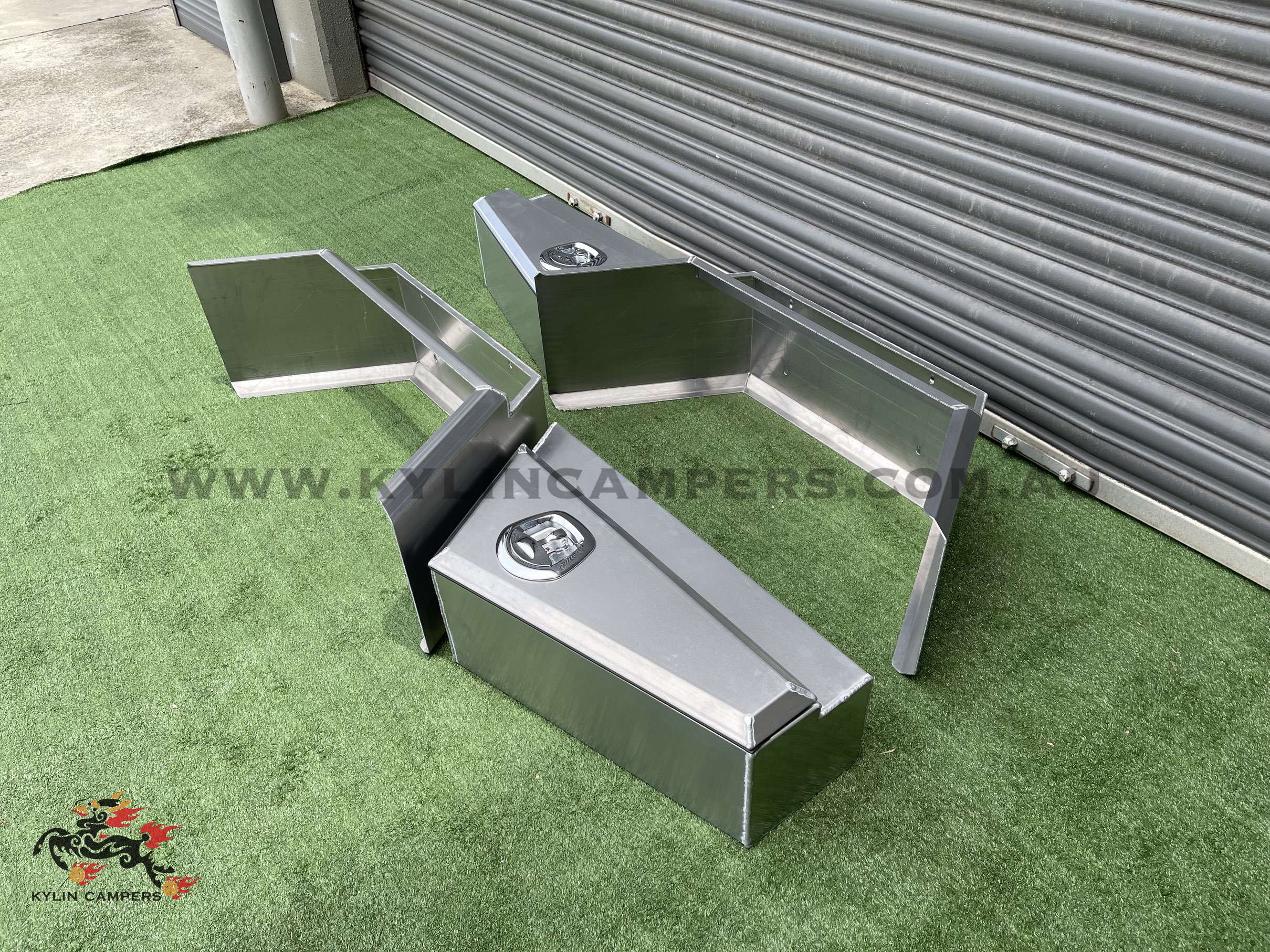

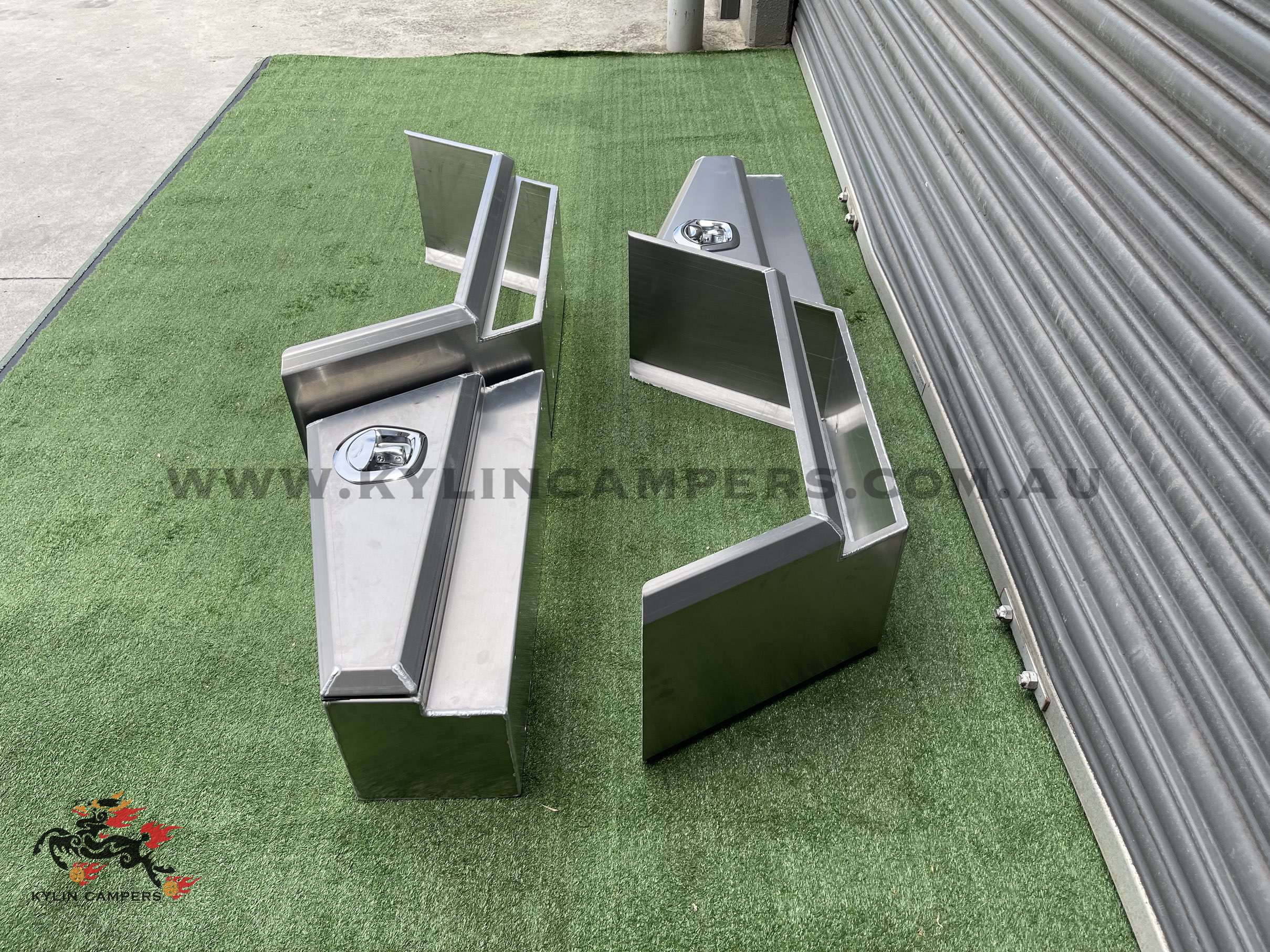

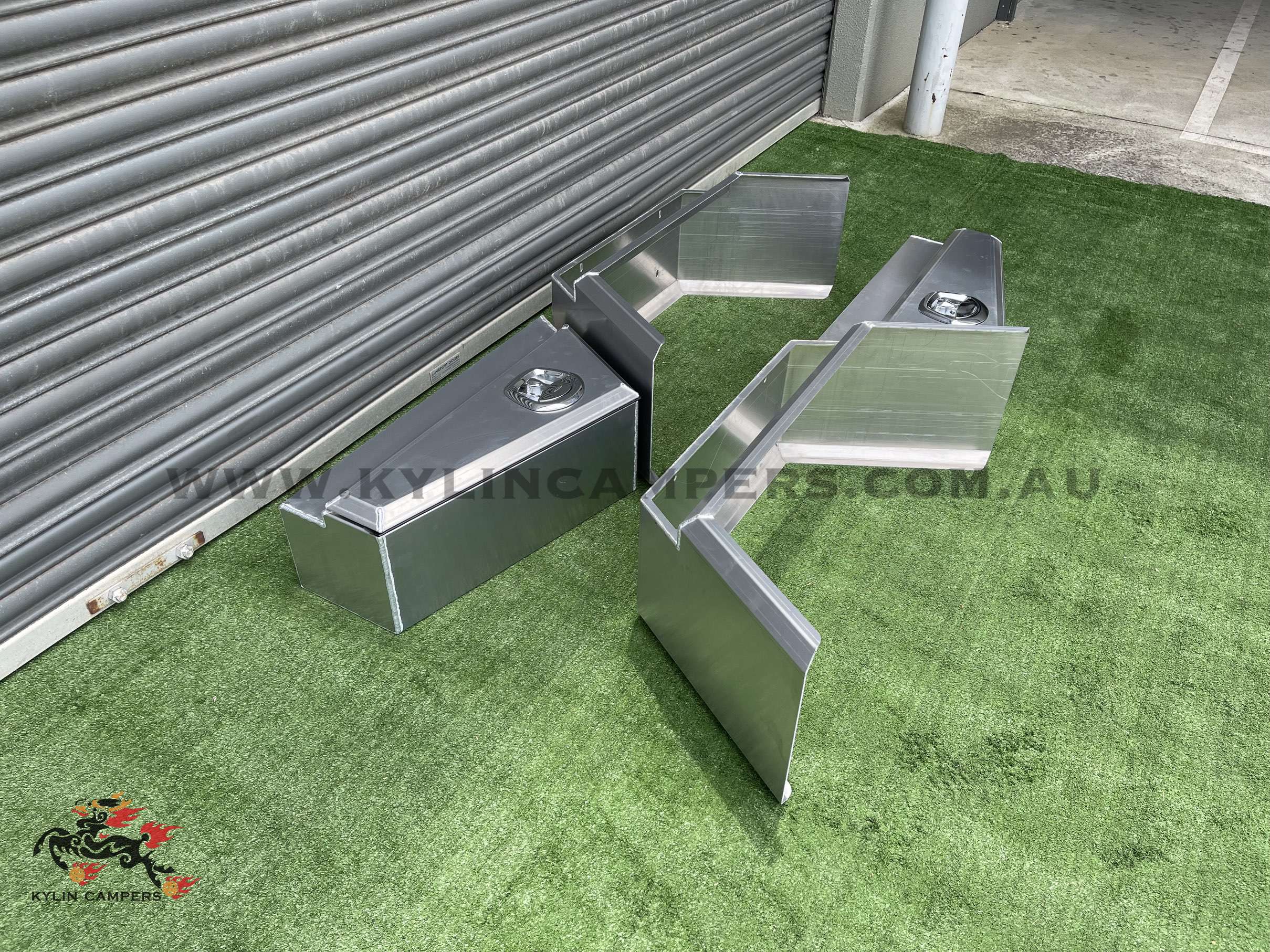

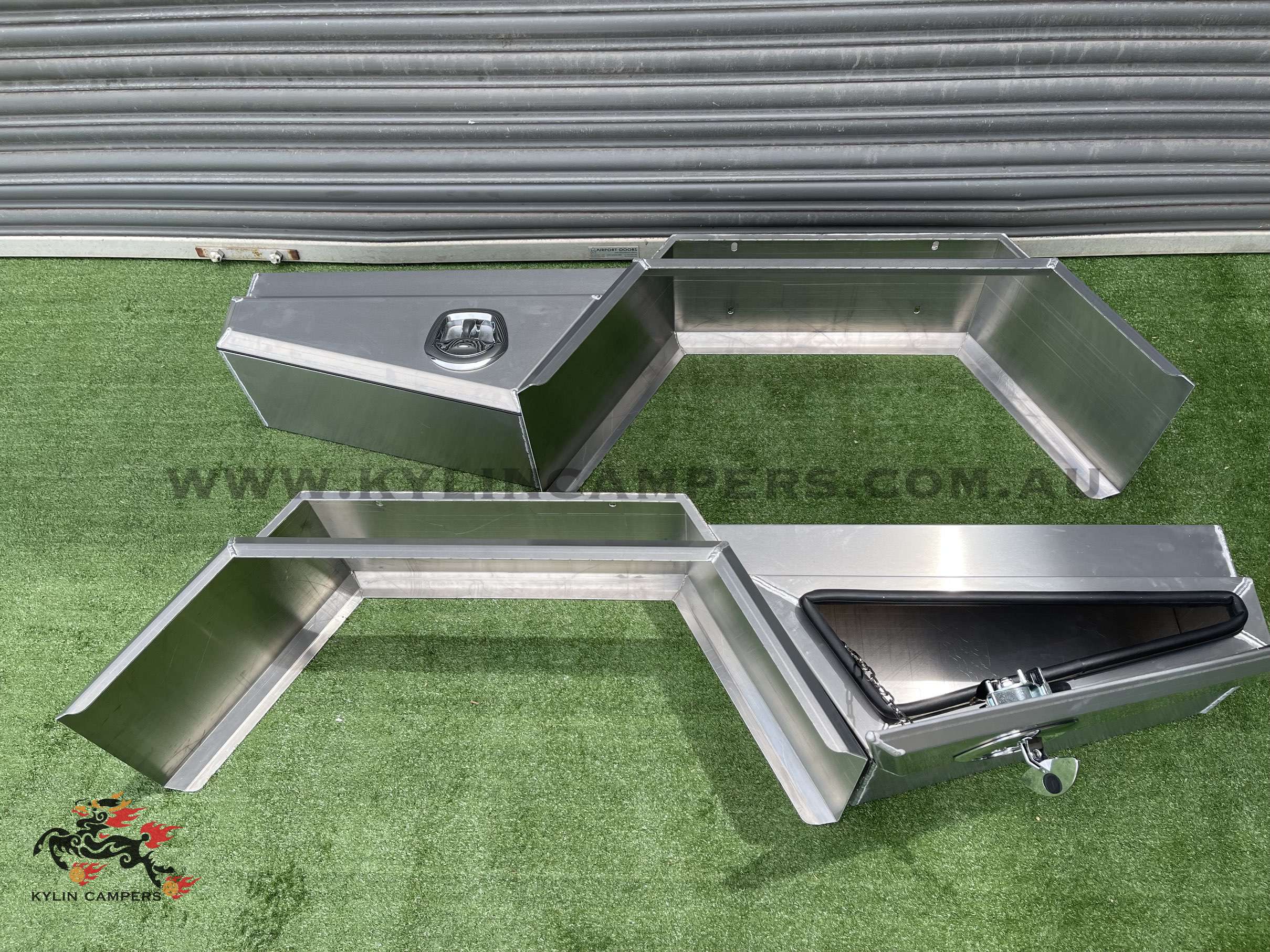

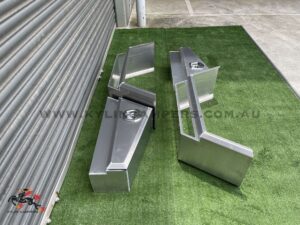

This Combo Package includes 2 x Silver mudguards, 2x 750mm Silver Single Tapered Side Toolboxes

All Rope Rail version

Special Package Deal for this Combo, Save $$$ when you purchase them together.

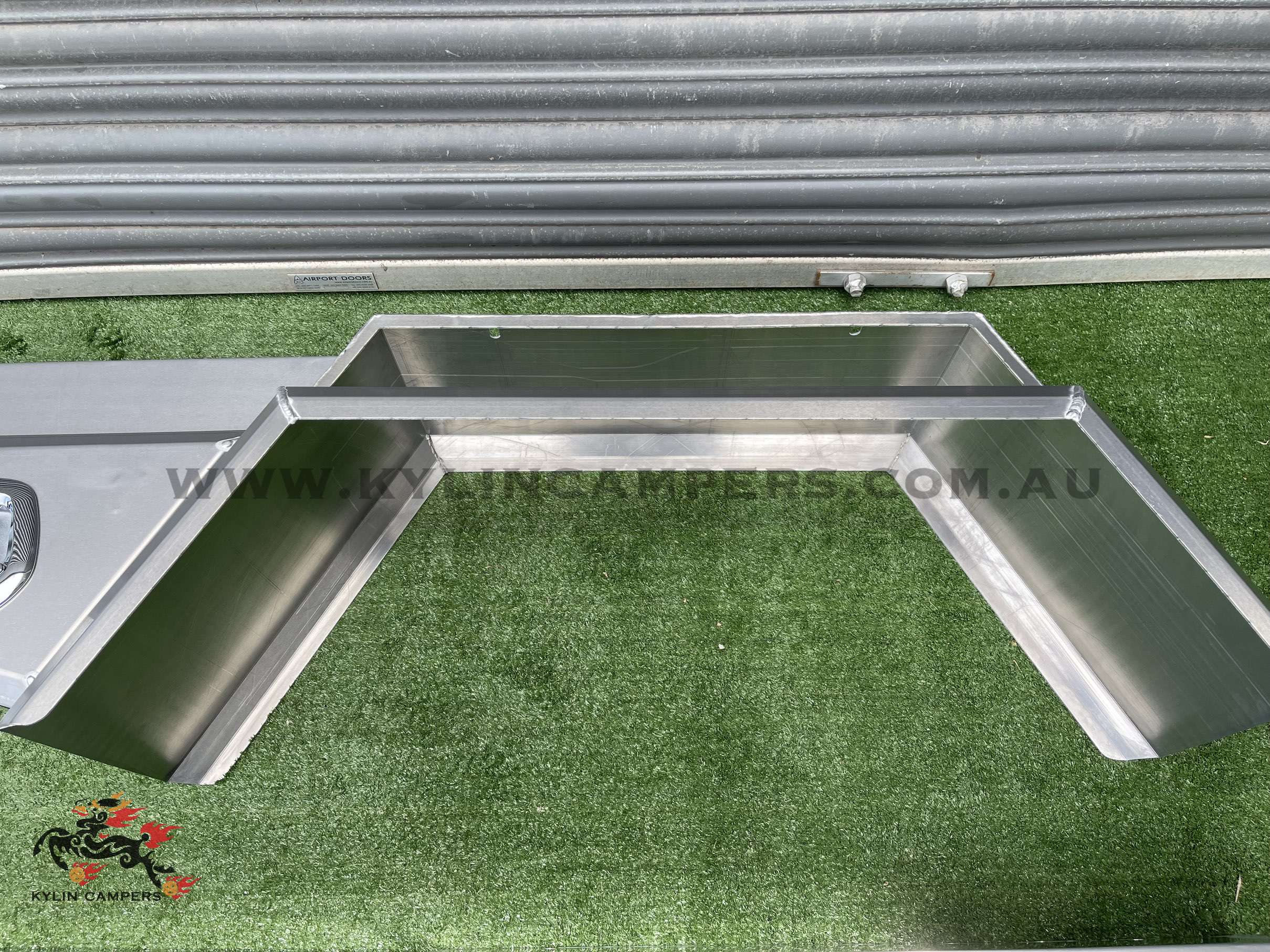

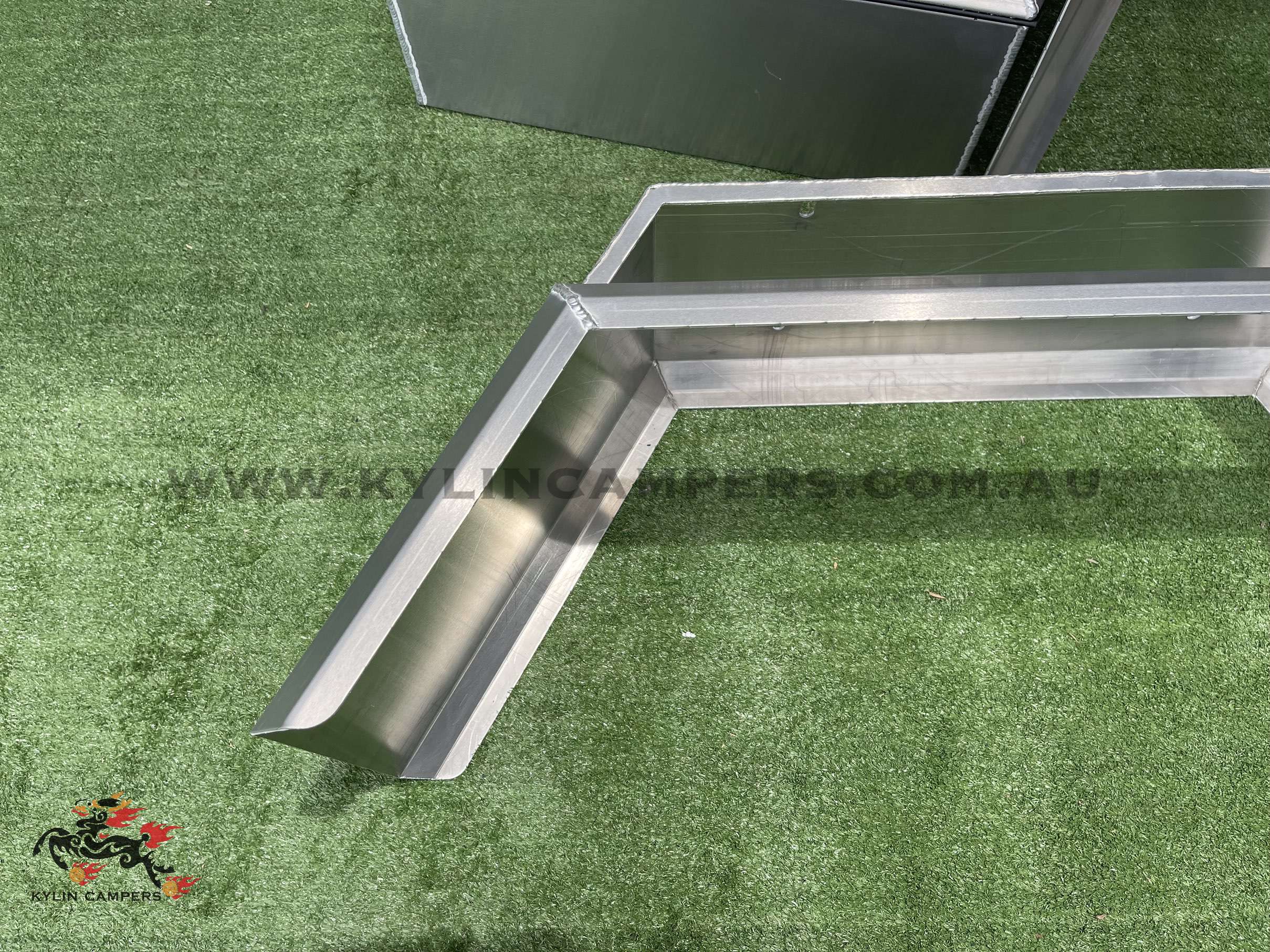

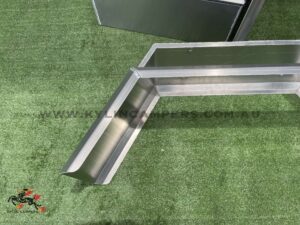

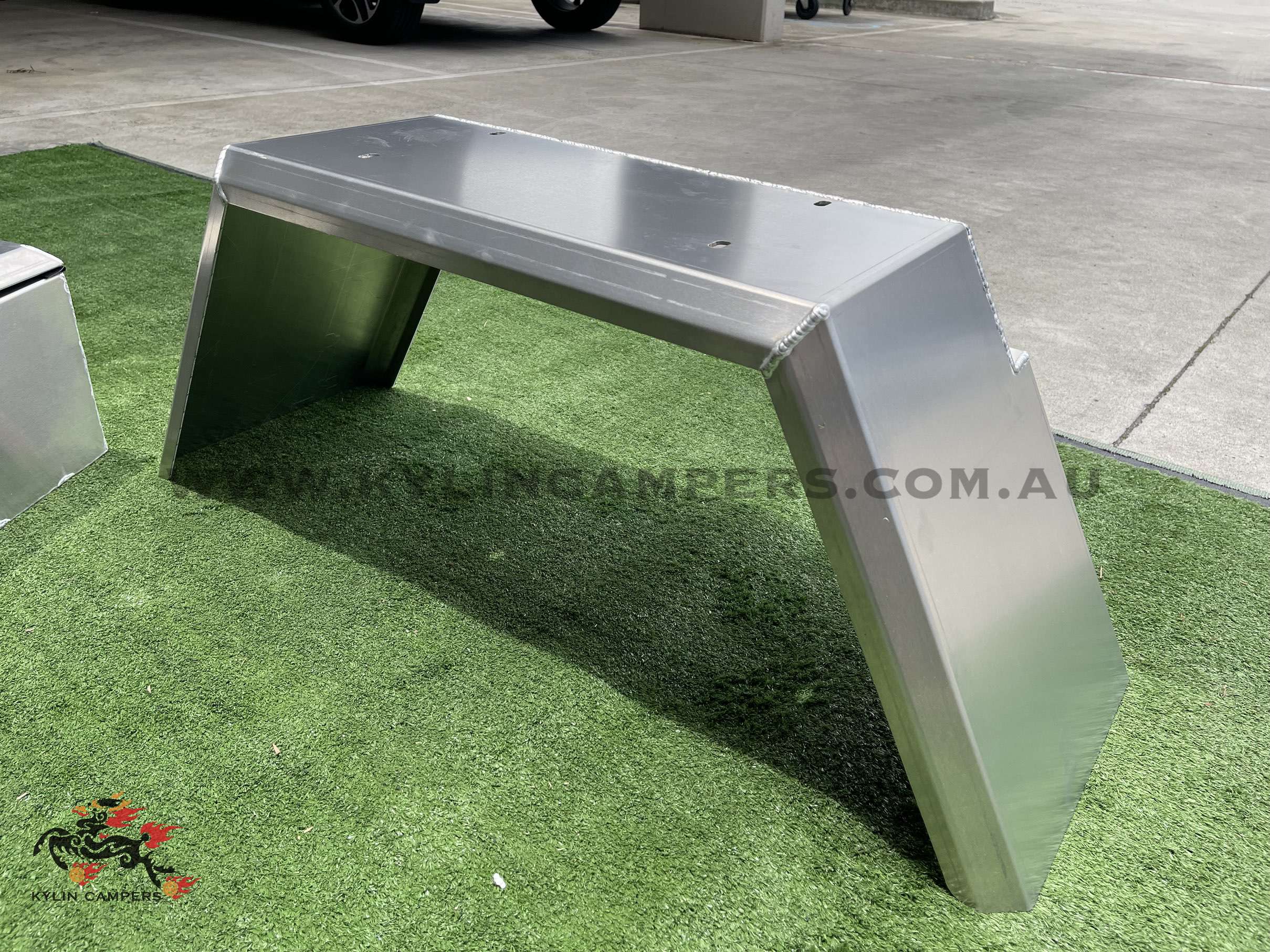

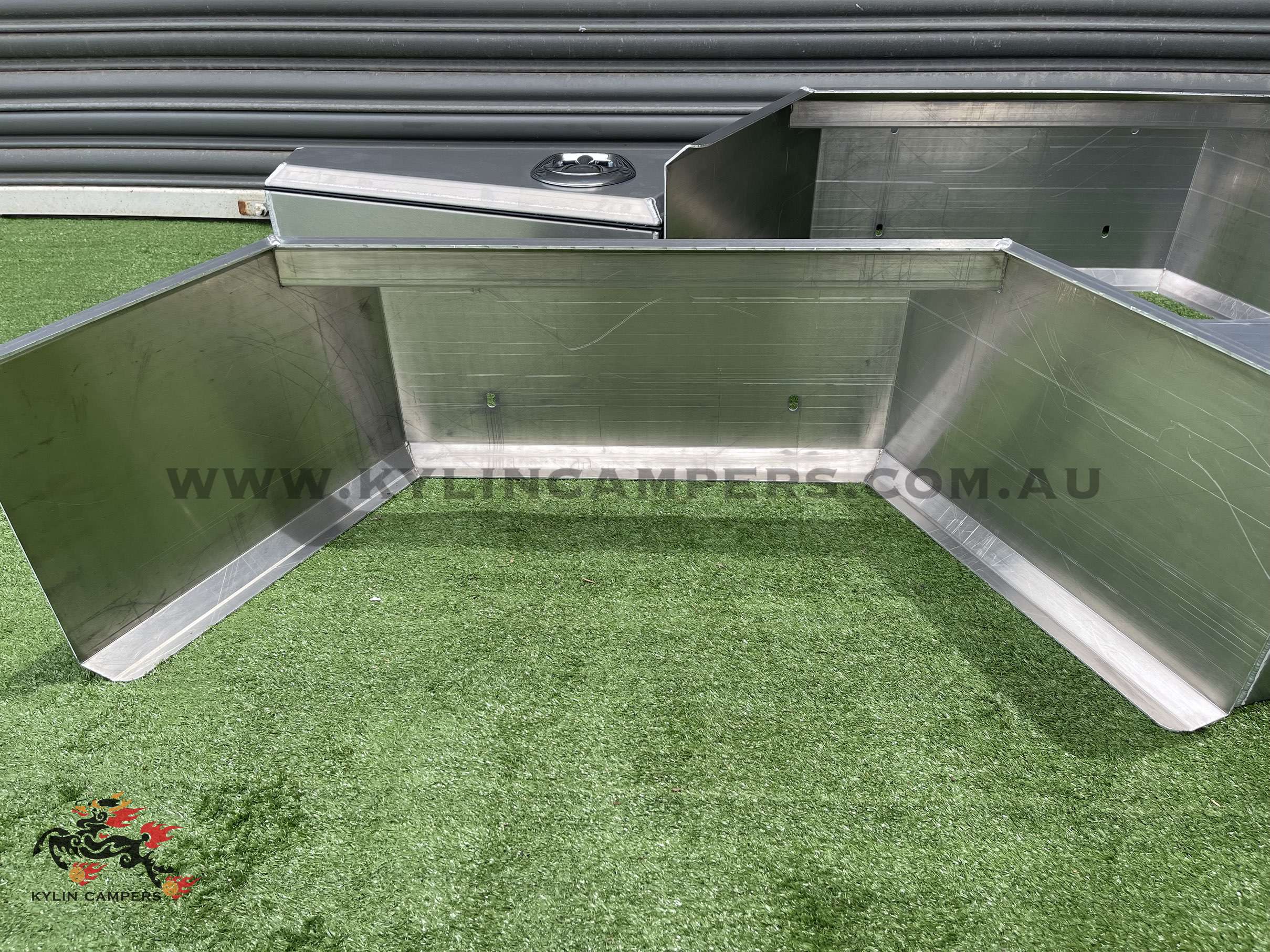

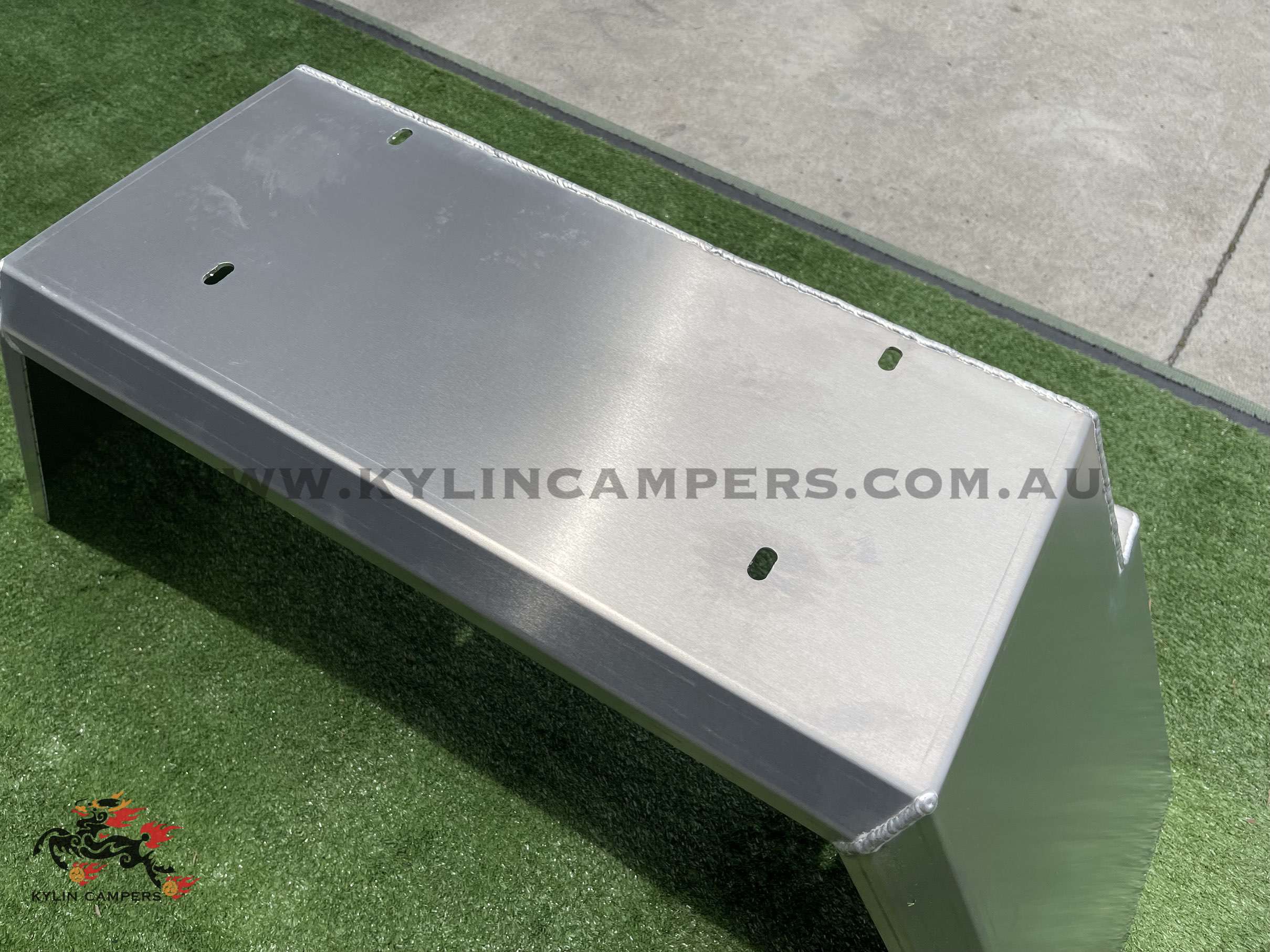

Ute Tray Mudguard / Wheel Guard (Rope Rail Version) Specifications

  • Overall length: 1000 mm
  • Overall width: 330 mm
  • Overall height: 393 mm
  • Front vertical height: 375 mm
  • Back vertical height: 393 mm
  • One-Piece design
  • Cut out for Rope Rail: 55 mm wide x 100 mm high
  • 60 Degrees Angle
  • 3mm Marine Grade 5052 Flat Plate in raw finish
  • Flared Guards
  • Sold in a pair
  • Weight: 5kg each

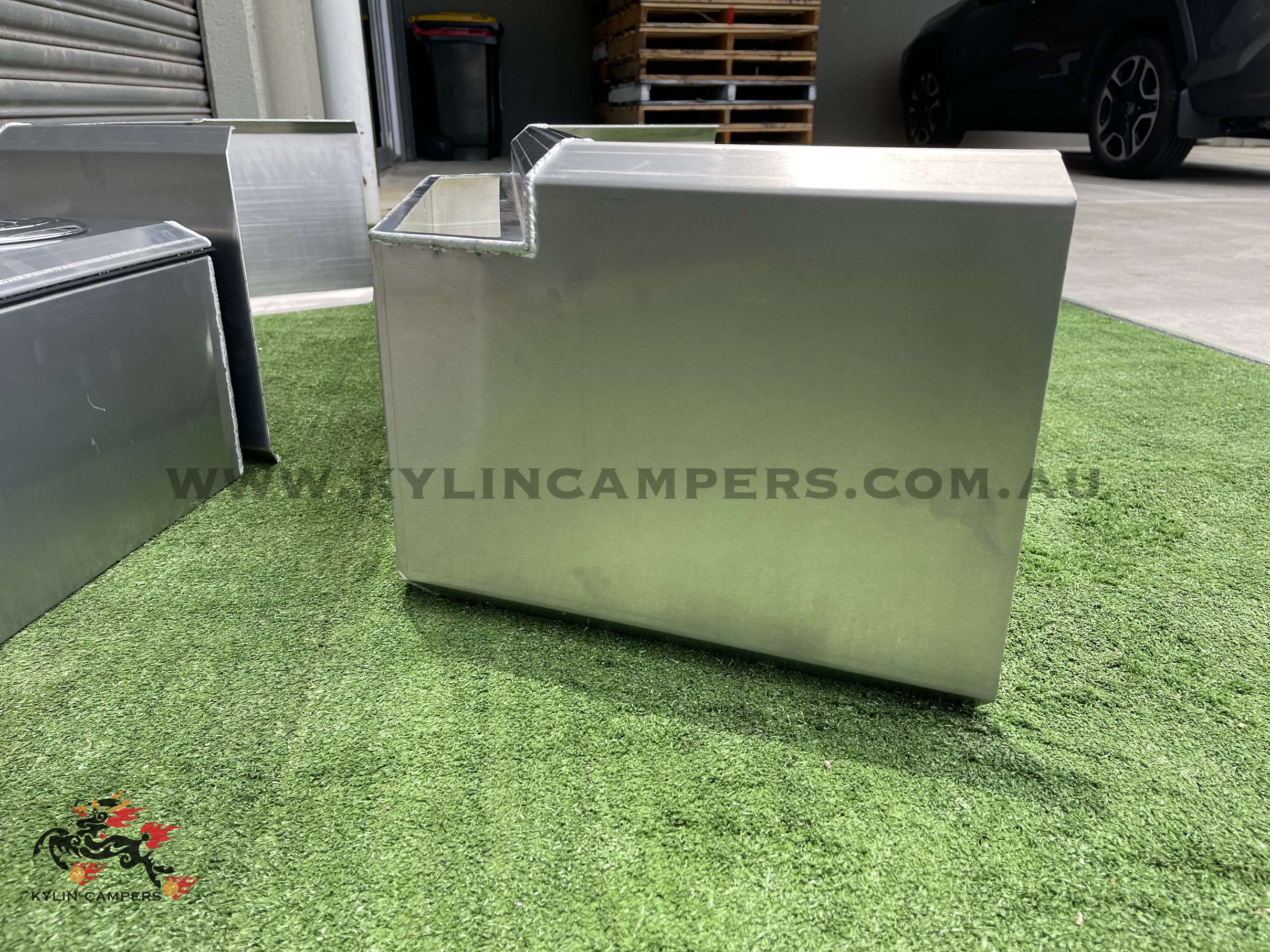

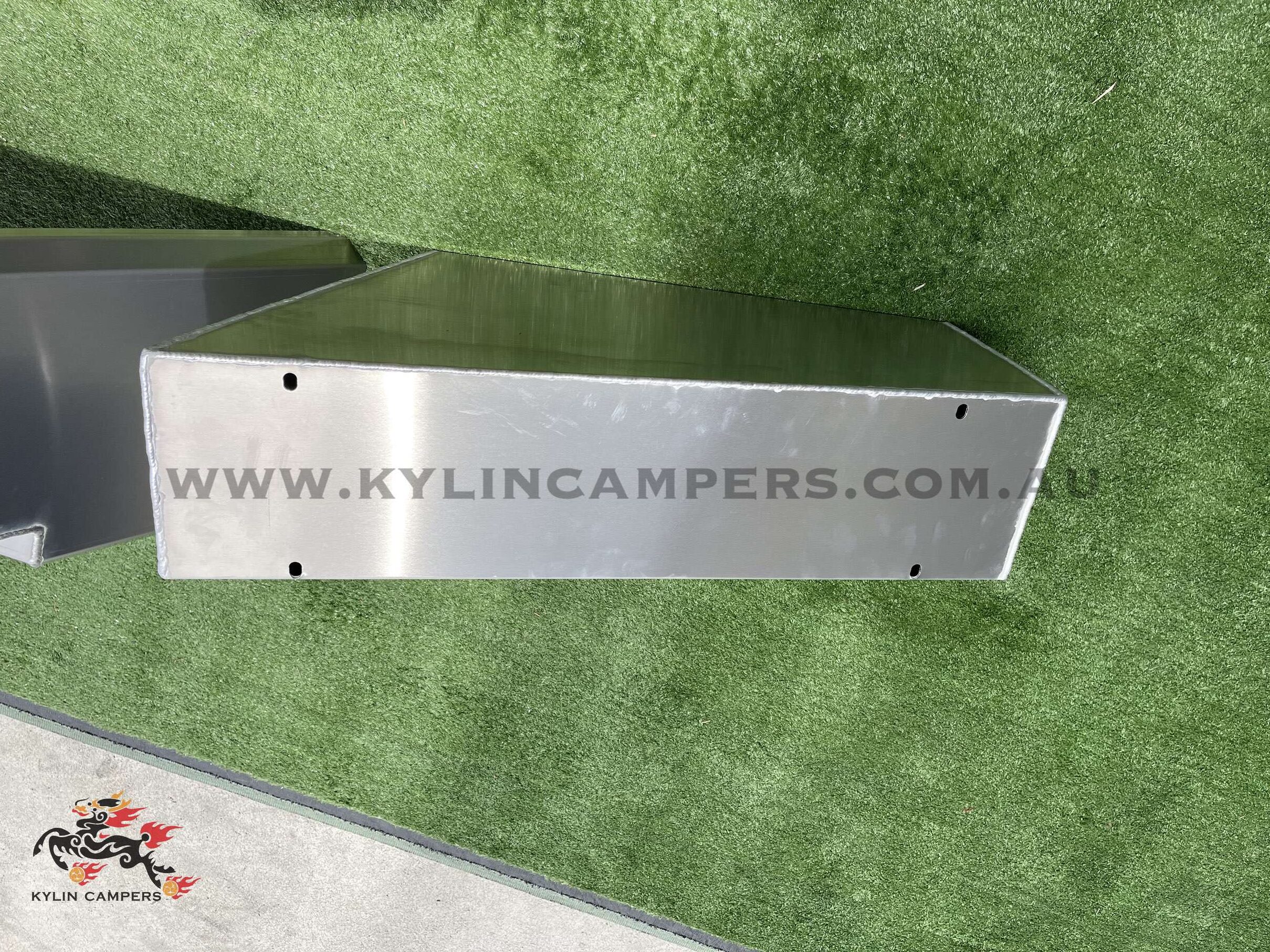

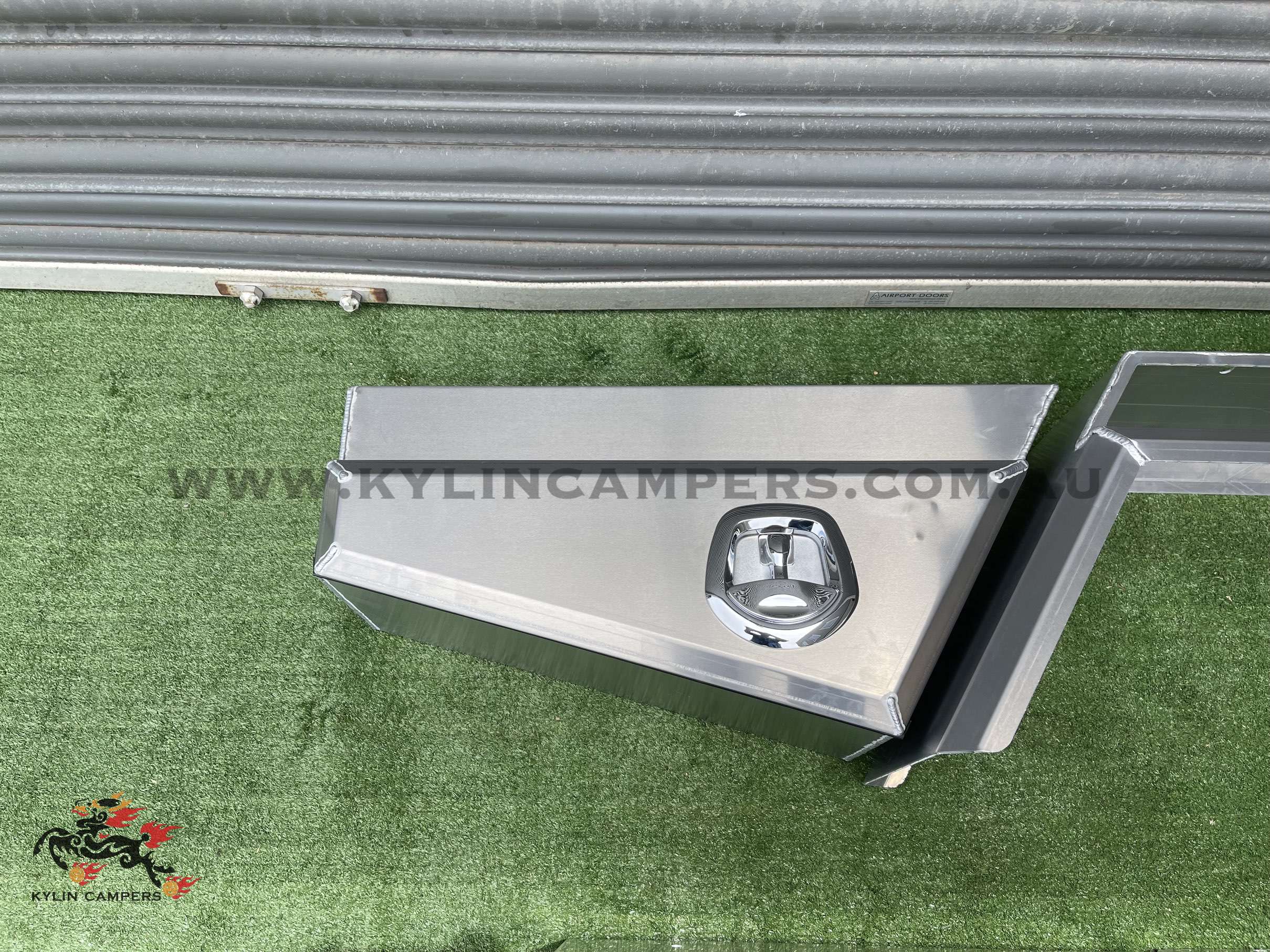

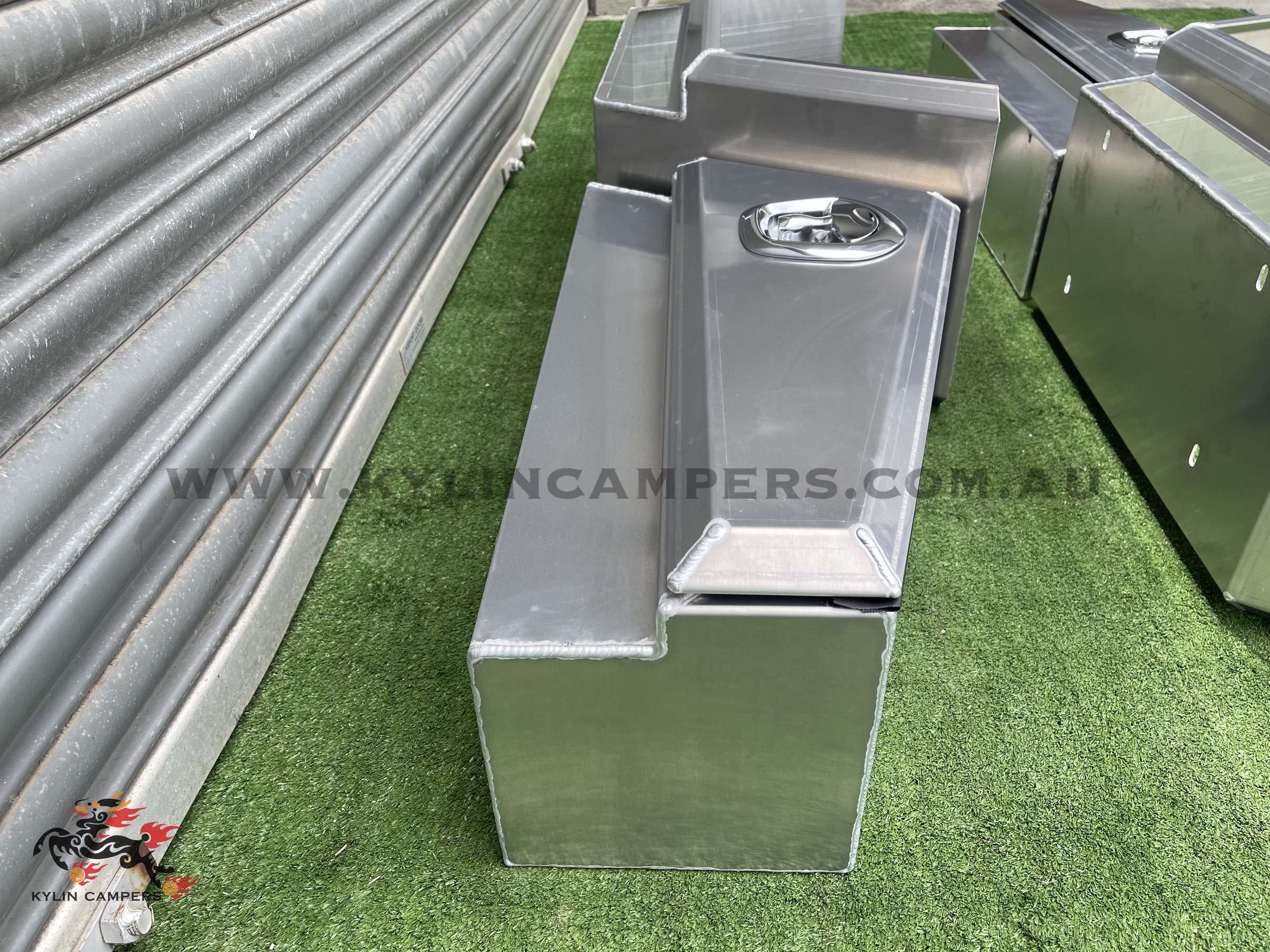

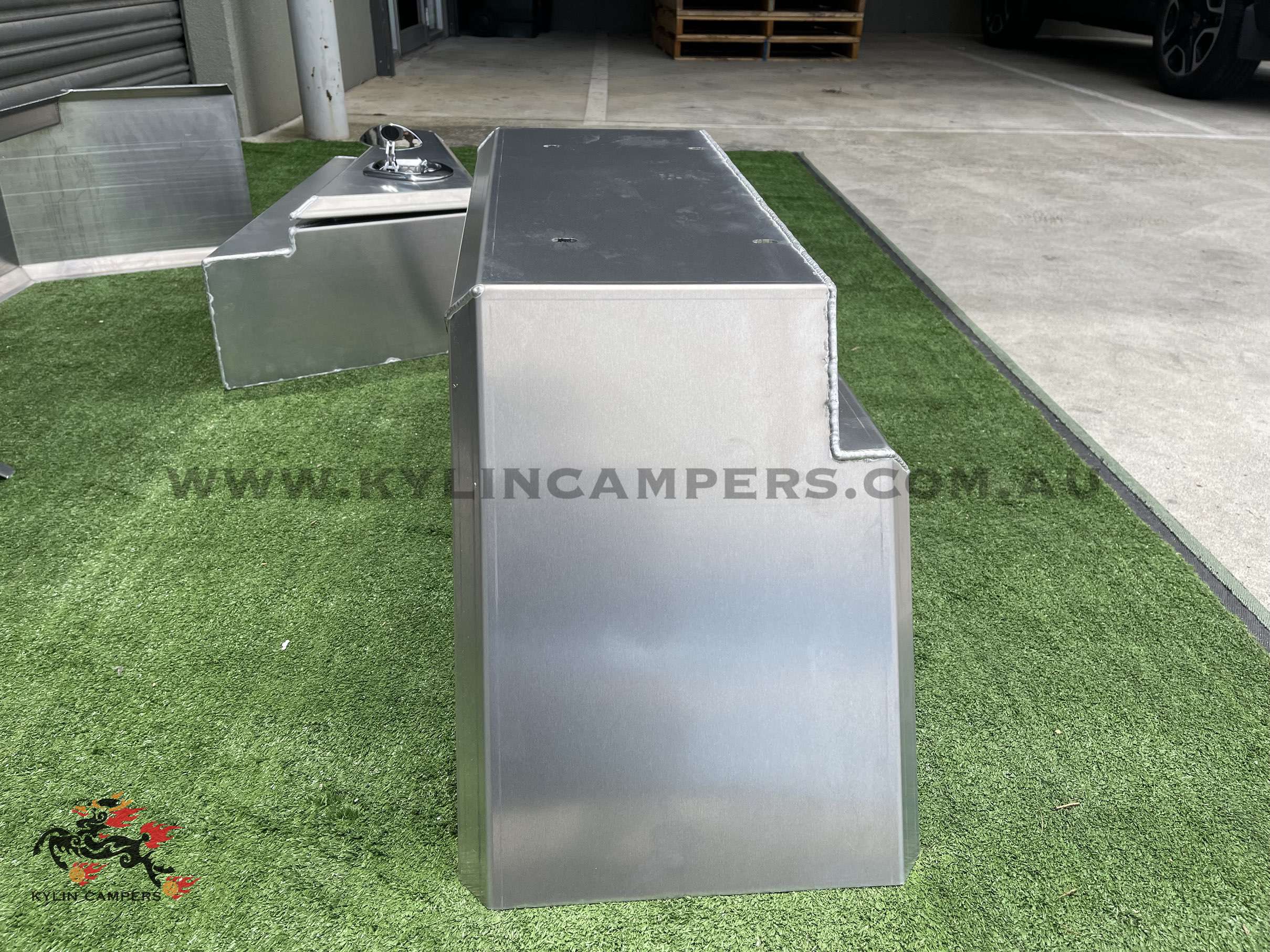

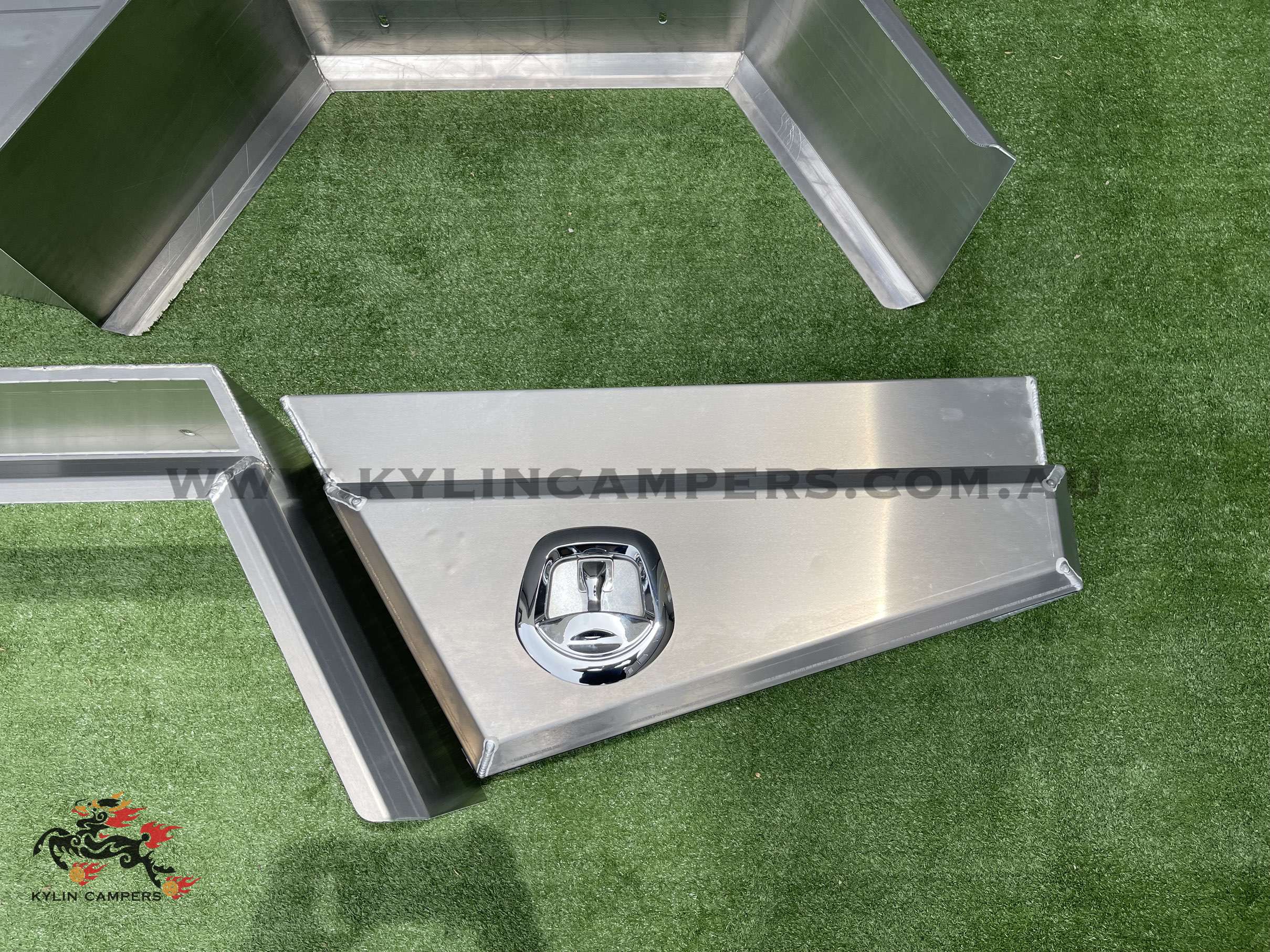

750mm Side toolboxes / Under Tray Toolboxes (Rope Rail Version) Specifications:

  • Size: 755mm long x 370 / 220mm high x 250mm wide
  • Tapered end: 220mm high

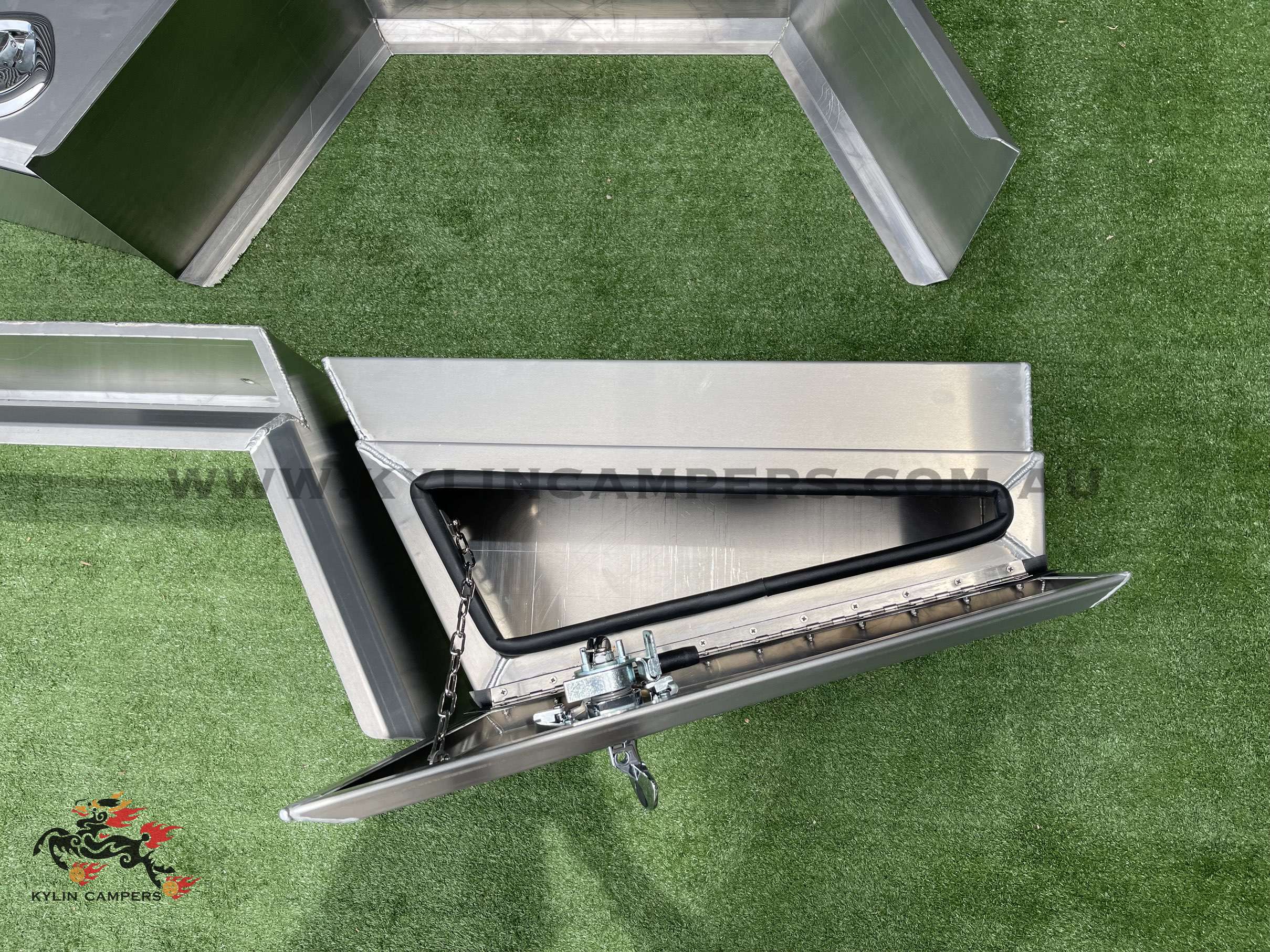

  • Fully Length Stainless Steel Piano Hinge
  • Fully Seam Welded
  • Tapered Door design
  • Cut out for rope rail: 55 mm wide x 100 mm high
  • 2.5mm Marine grade 5052 flat alloy in raw finish

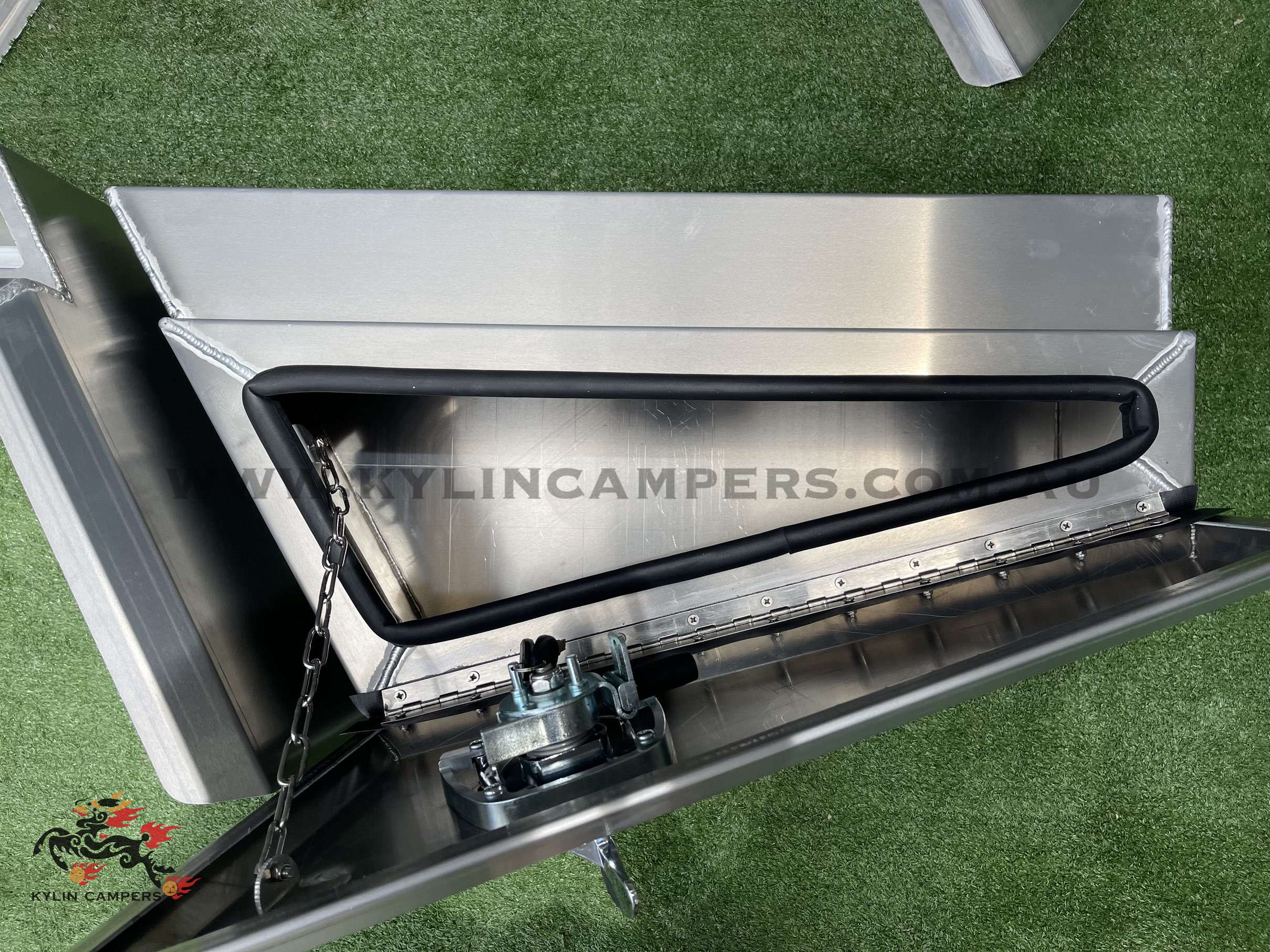

  • Water And Dust Proof Rubber Seals

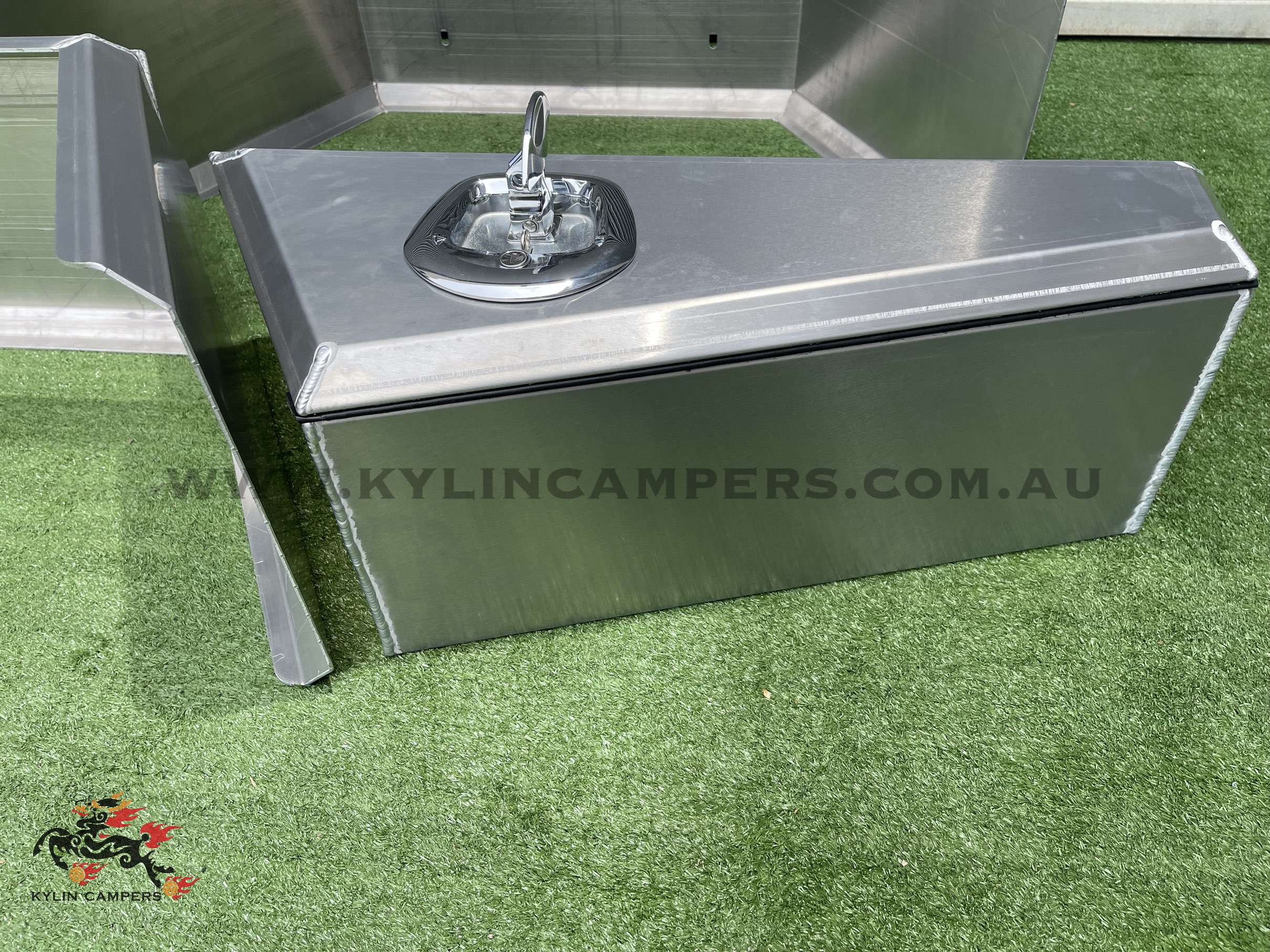

  • 1x chrome whale tail lock (Heavy duty compression locking mechanism, key lock type)
  • 1x chain for the door
  • Sold in a pair
  • Weight: 10 kg each


Packaging information:

Due to the size of these products, they will only be shipped on a small pallet.

Pallet size: 120 x 120 x 60 cm. Shipping Weight: 60kg



We ensure that your items are packaged correctly, we will not be liable for any damage in transit unless transit insurance has been purchased. For all insurance purchases please call 03 9357 8913. Insurance must be purchased and paid for prior to dispatch.


Pick up:

Free pick up from our factory in Campbellfield, VIC 3061



This product has to travel on a pallet and must be unload with a forklift.

Freight for this item MUST be to a business address with a FORKLIFT or a pickup depot with one of our chosen carriers. If not, freight will incur a hand unload and tailgate fee (POA) which will need to be paid prior to dispatch.

Please use the “Quick Shipping Quote” function to get a freight quote. (Please note that the price quoted in quick shipping quote is without GST, GST will be included when check out)
