Feel free to email us at sales@kylincampers.com.au.

If you have any questions on what’s included and what’s not in different packages, please give us a call or send us an email. We are more than happy to explain everything to you.

Specification:

• Size: 1800 mm L x 1800mm W
• Powder coated satin black
• Constructed with Marine Grade 5052 3mm flat alloy & aircraft grade aluminium extrusions
• No headboard for weight reduction

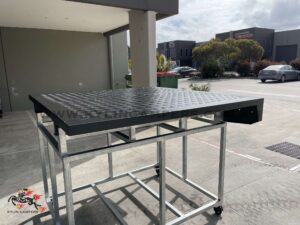

• Checker Plate Floor Satin Black Powder Coated

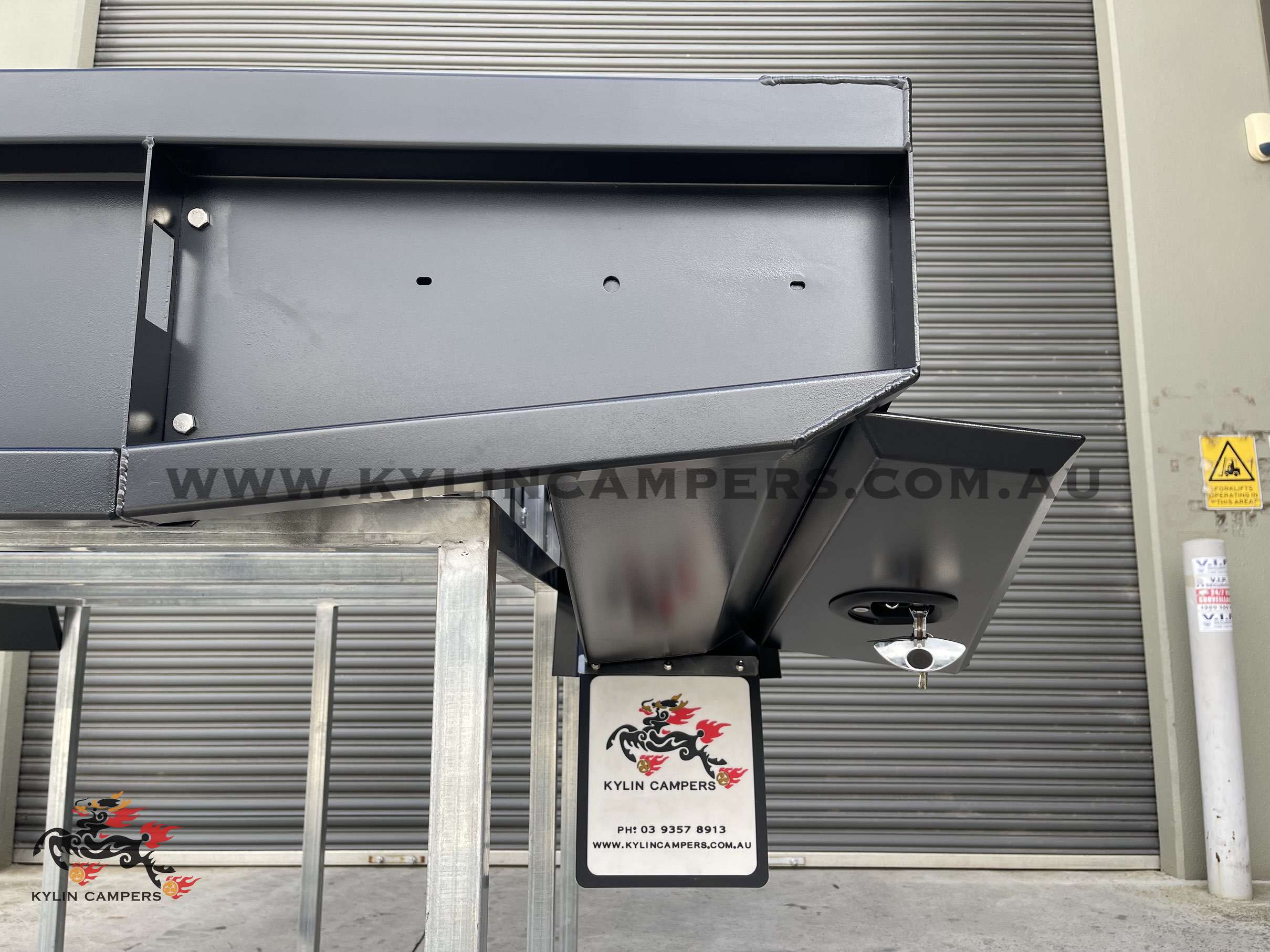

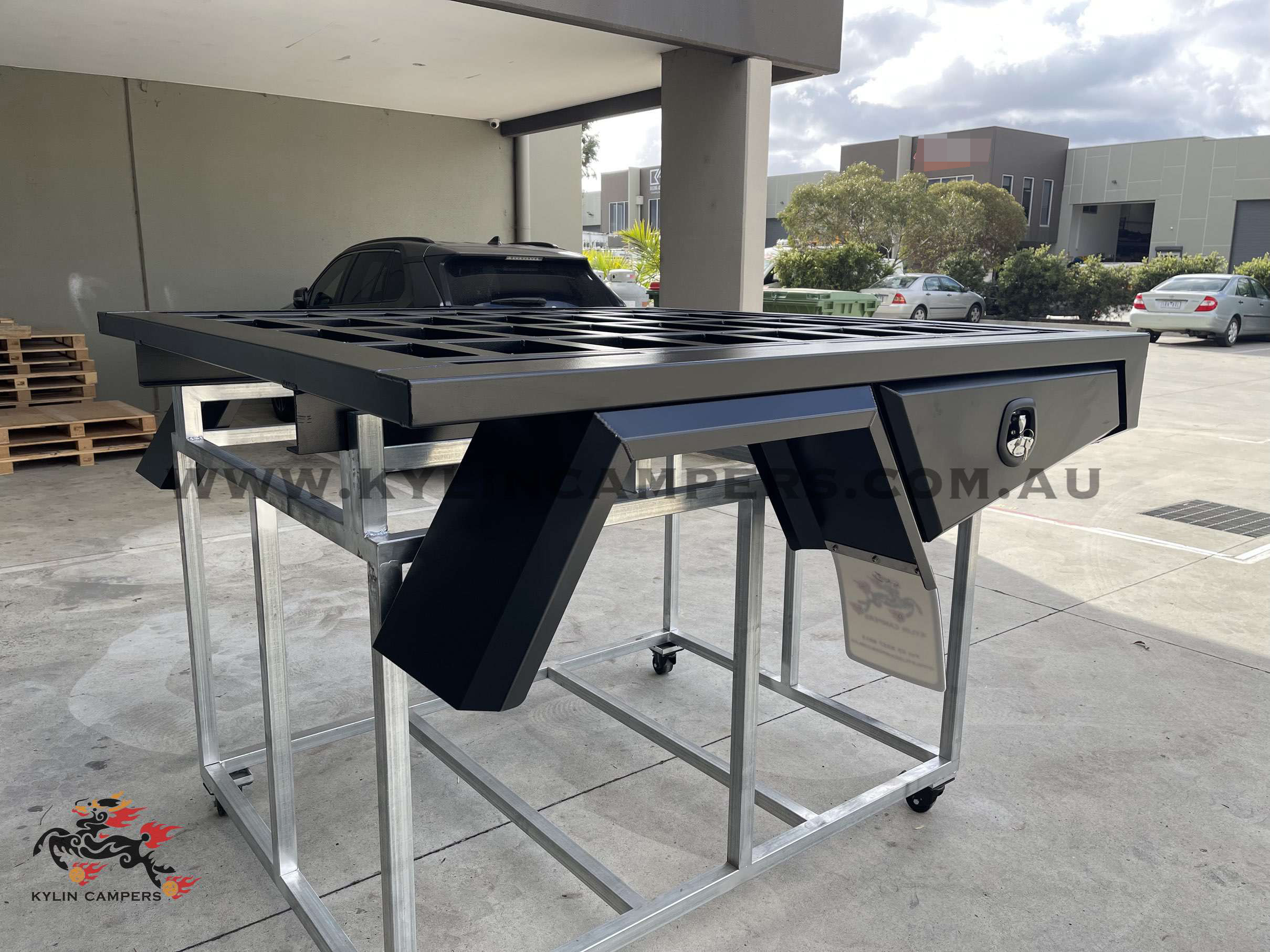

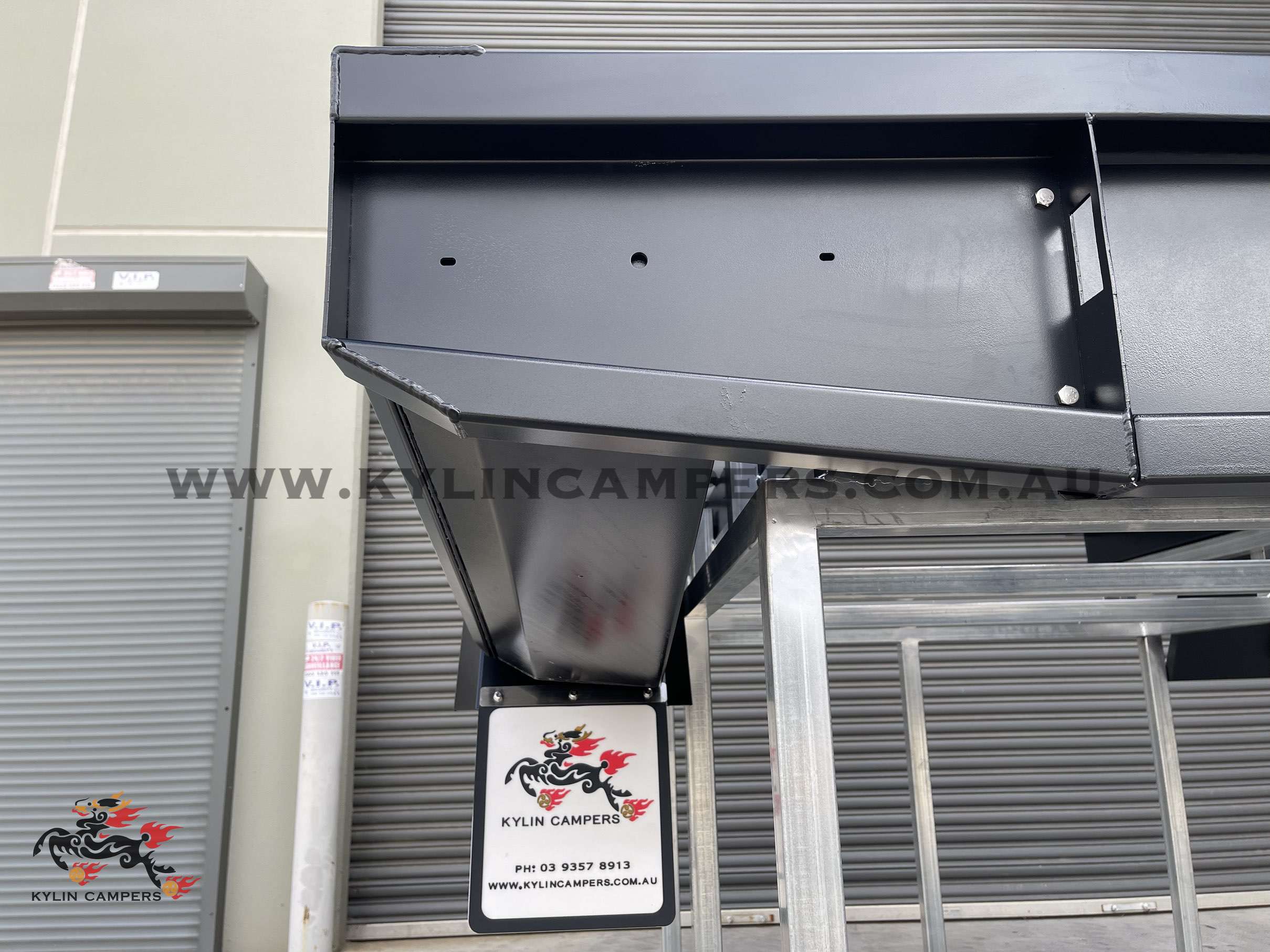

• 2x One-Piece Mudguards (laser cut & TIG -welded 5052 Marine Grade Alloy)

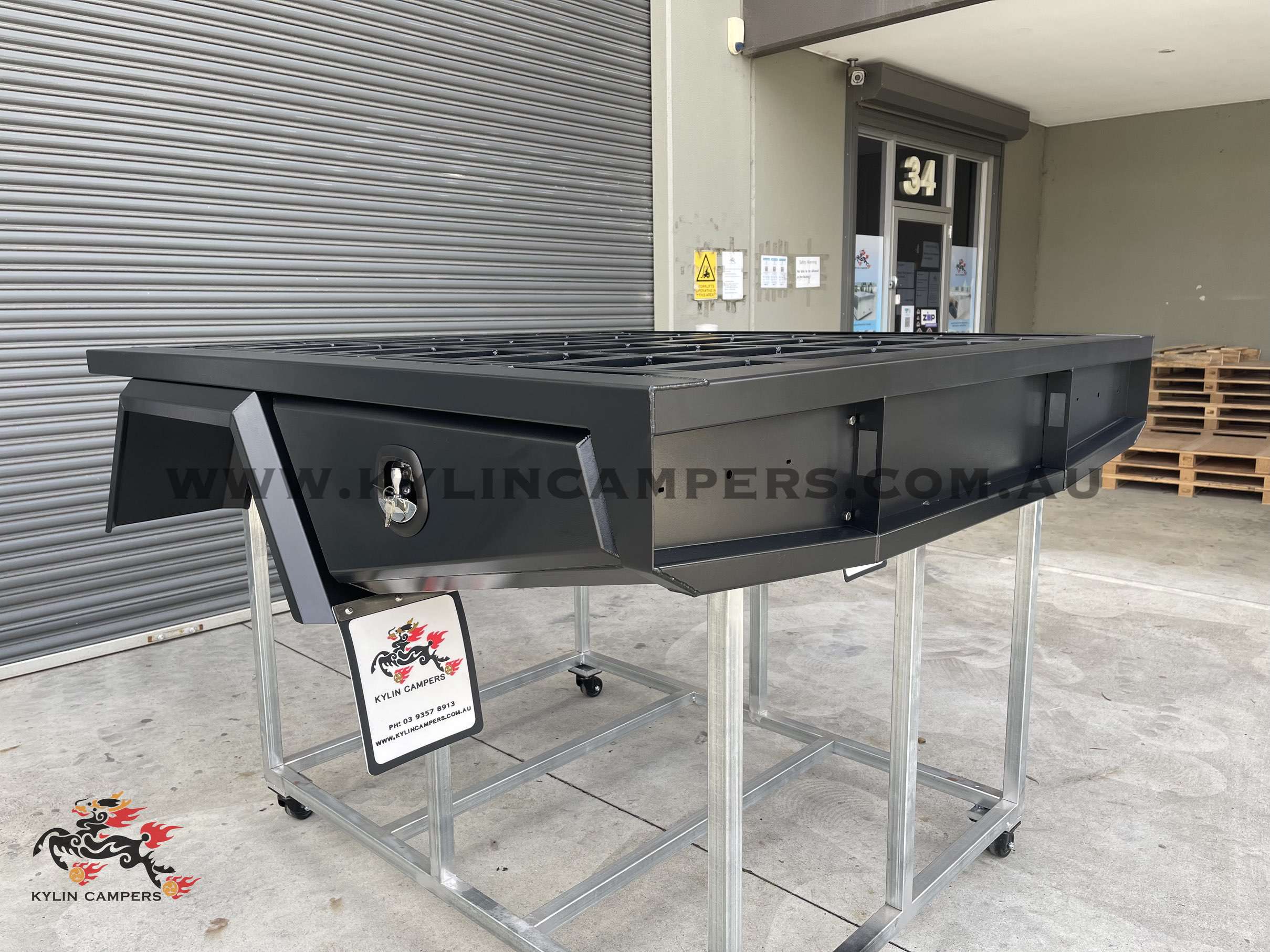

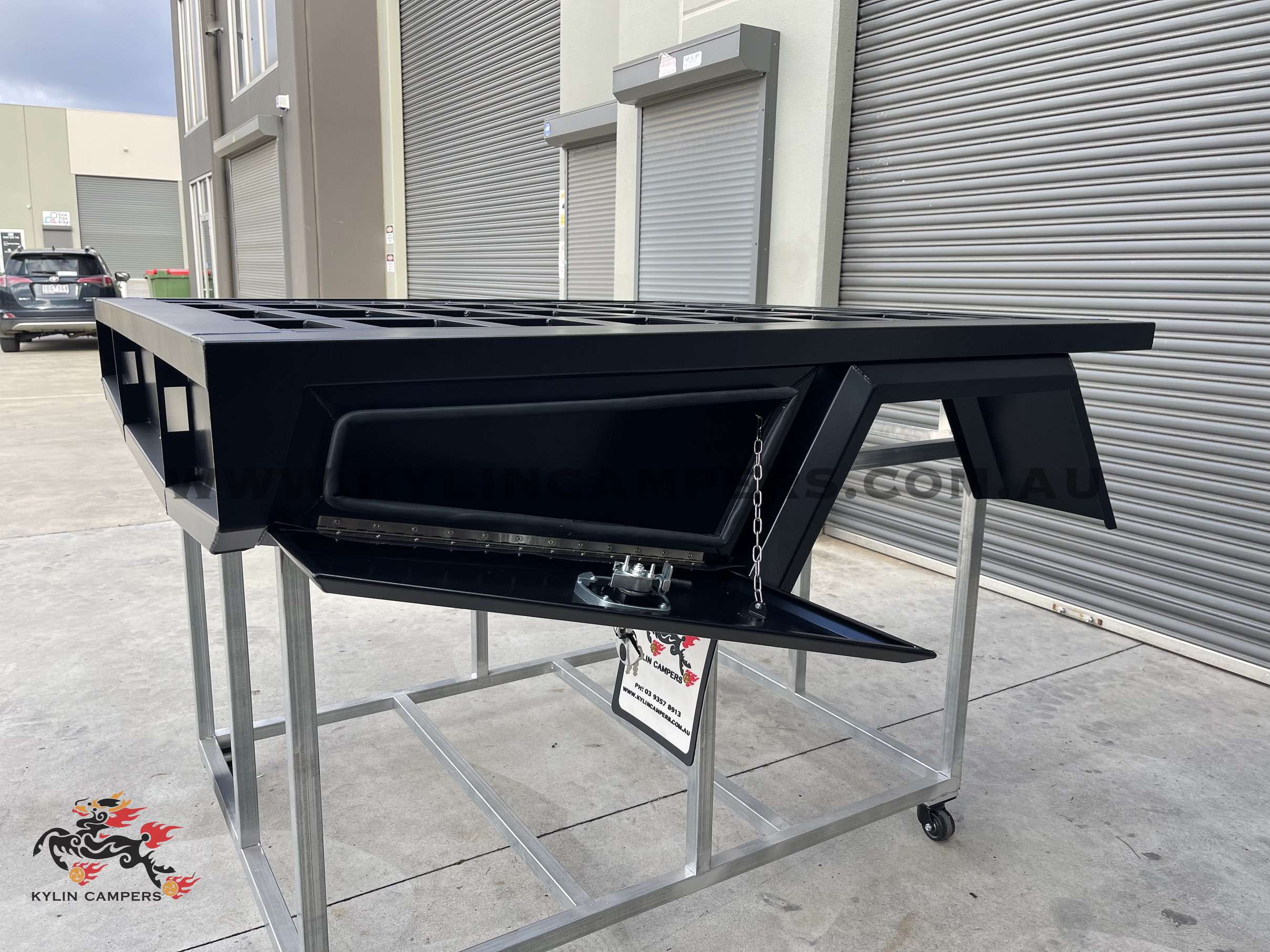

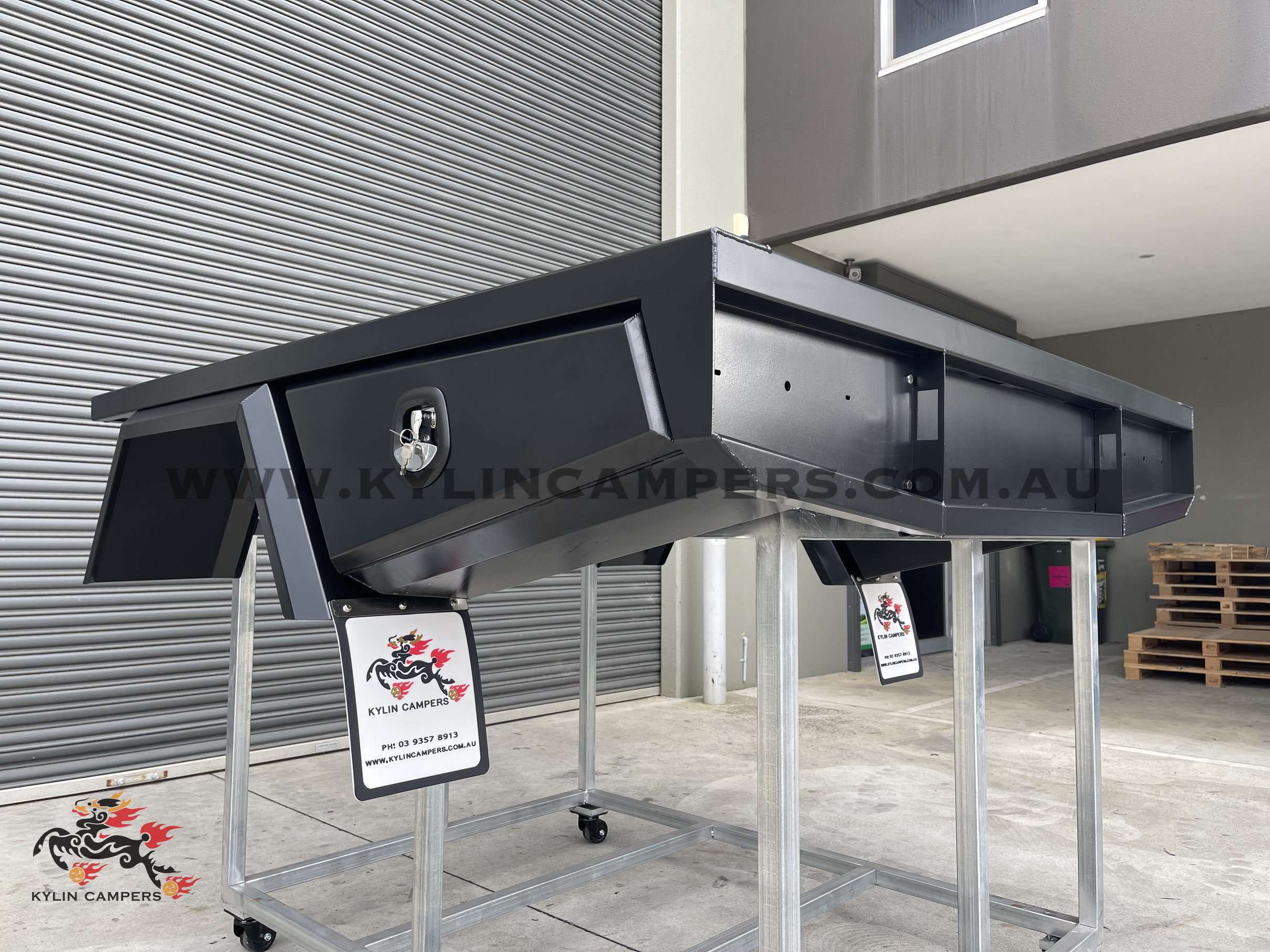

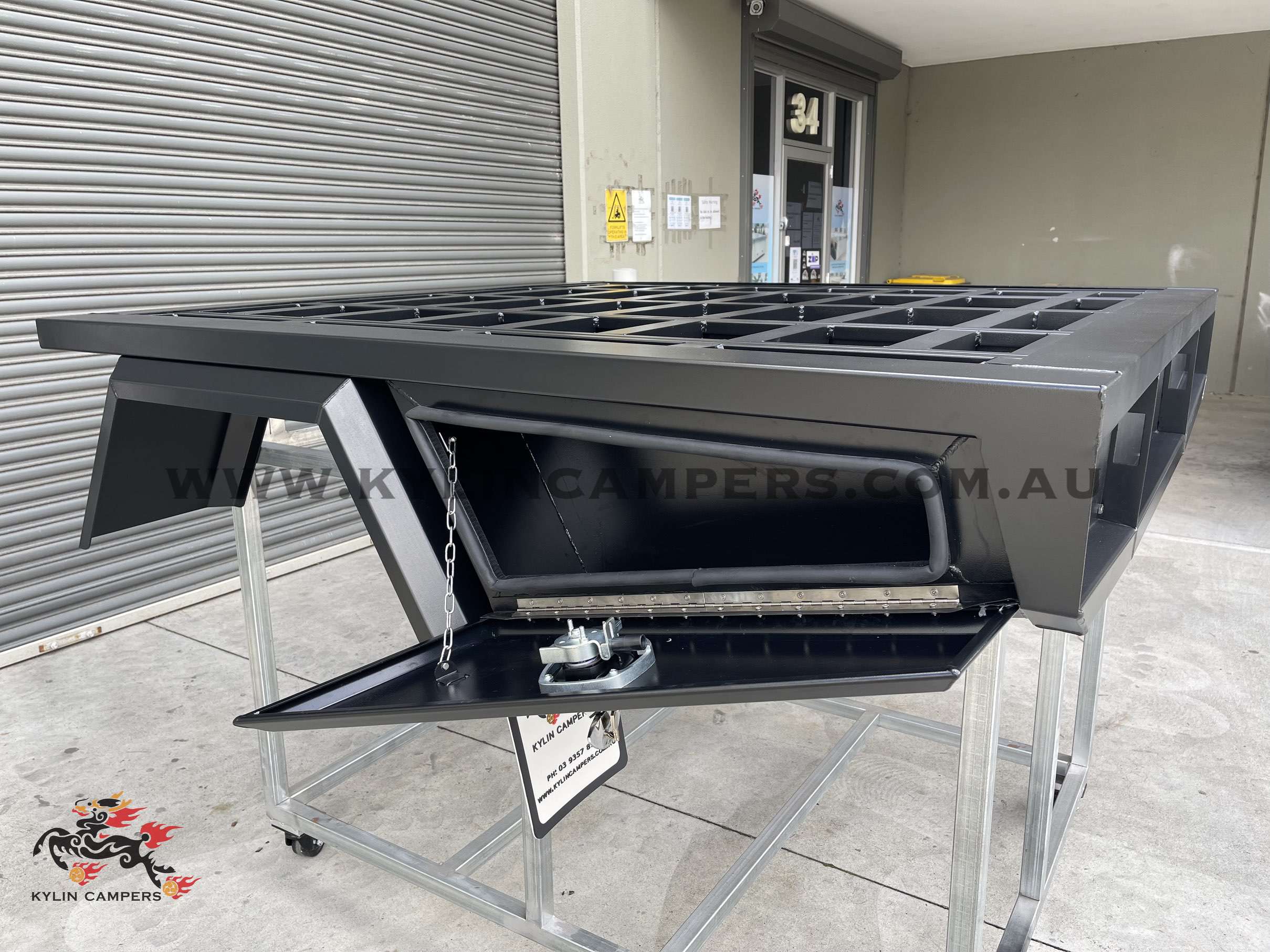

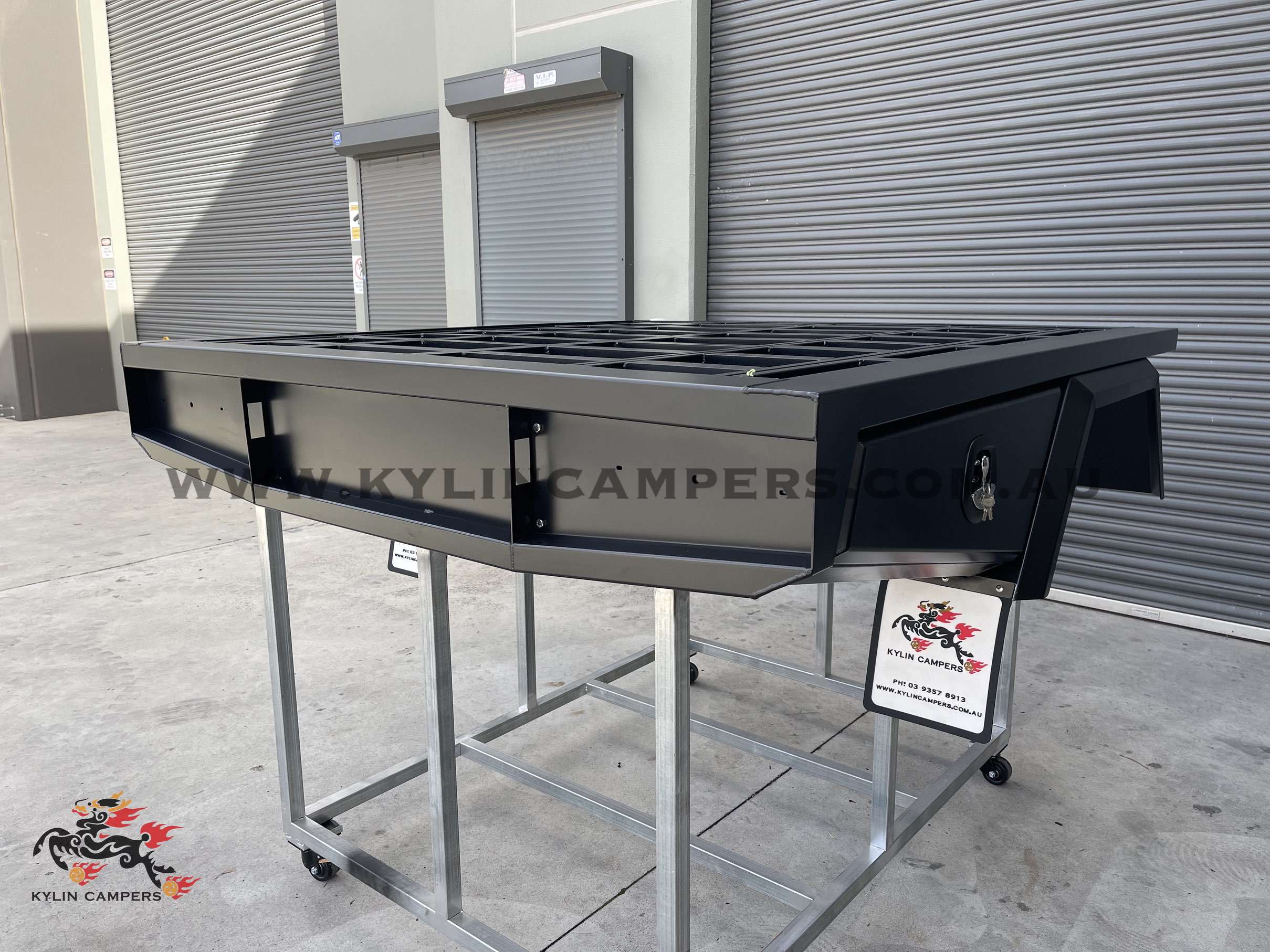

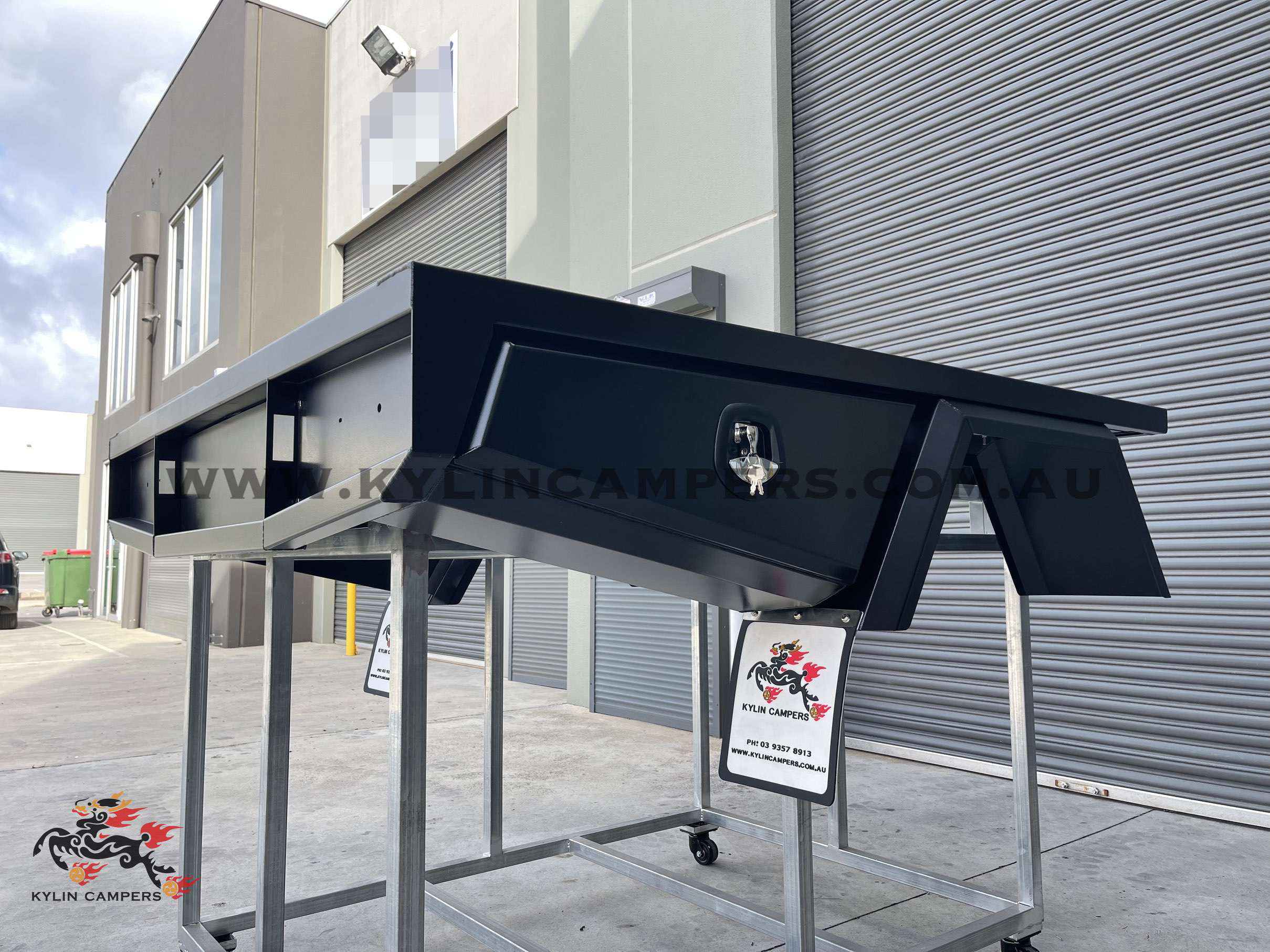

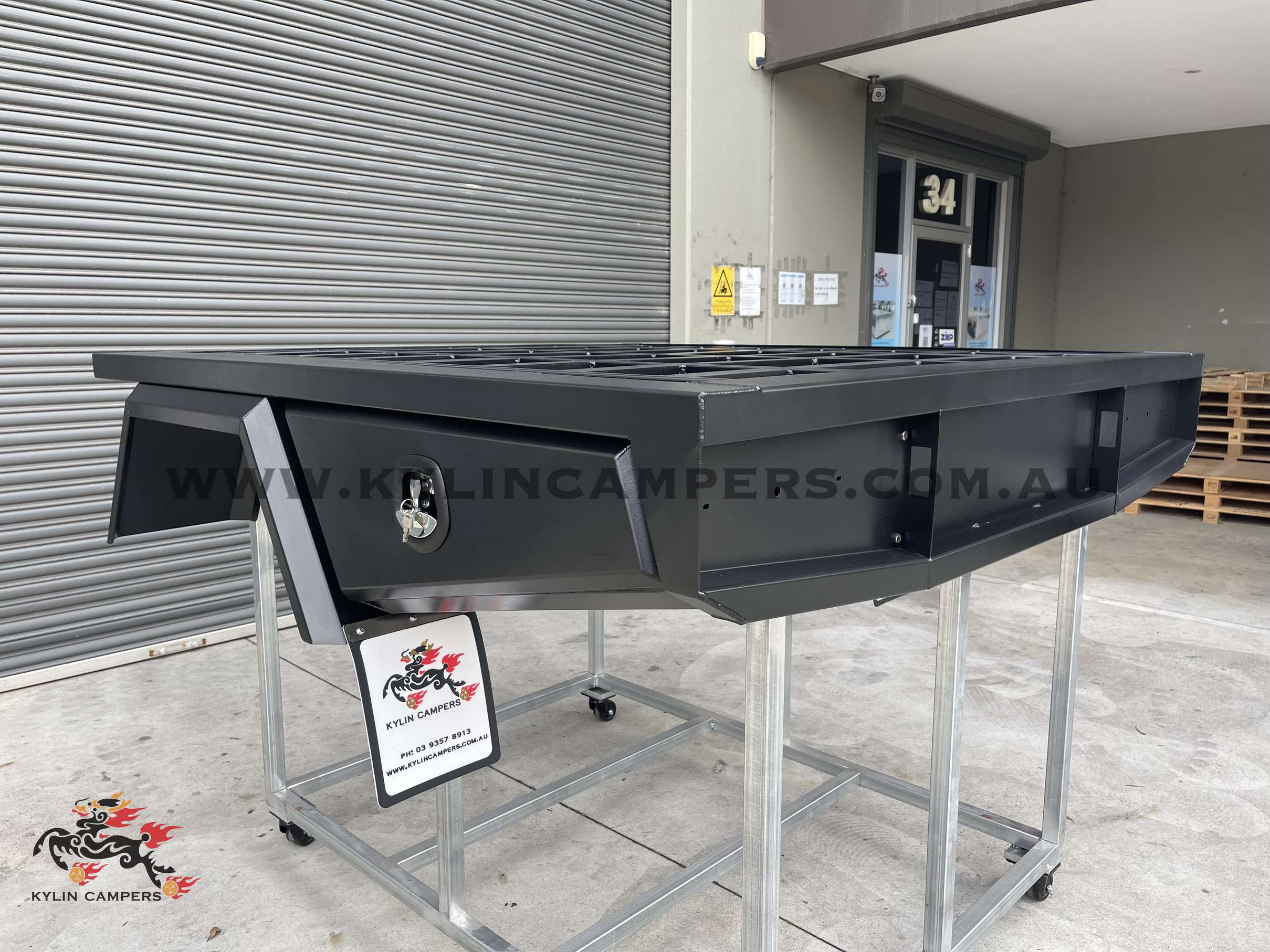

• Provision for side toolboxes (side toolboxes are included in base model or package 1, you can also leave them out)
• Mudguards & side toolboxes can be paired into different styles

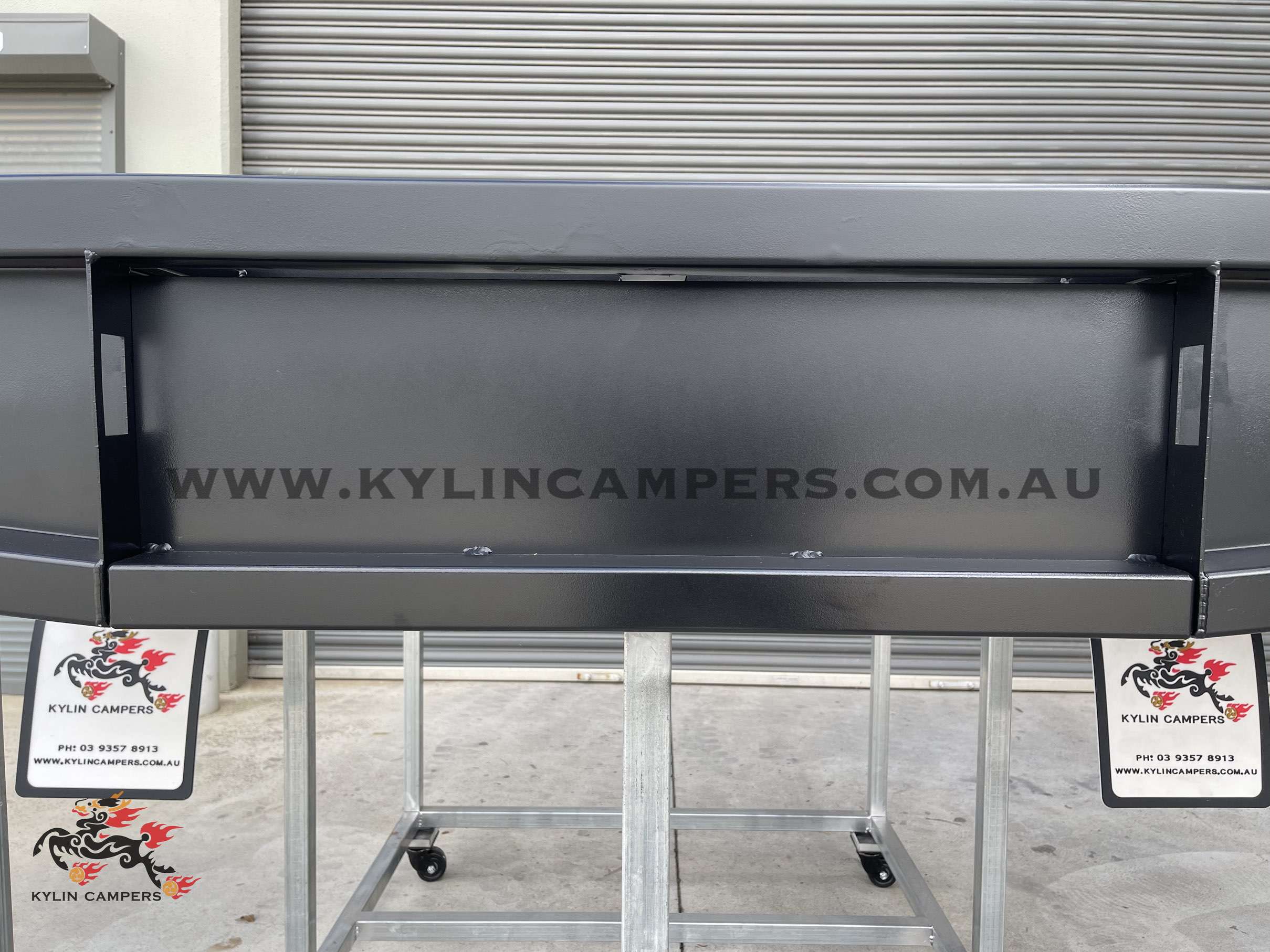

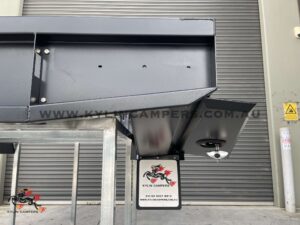

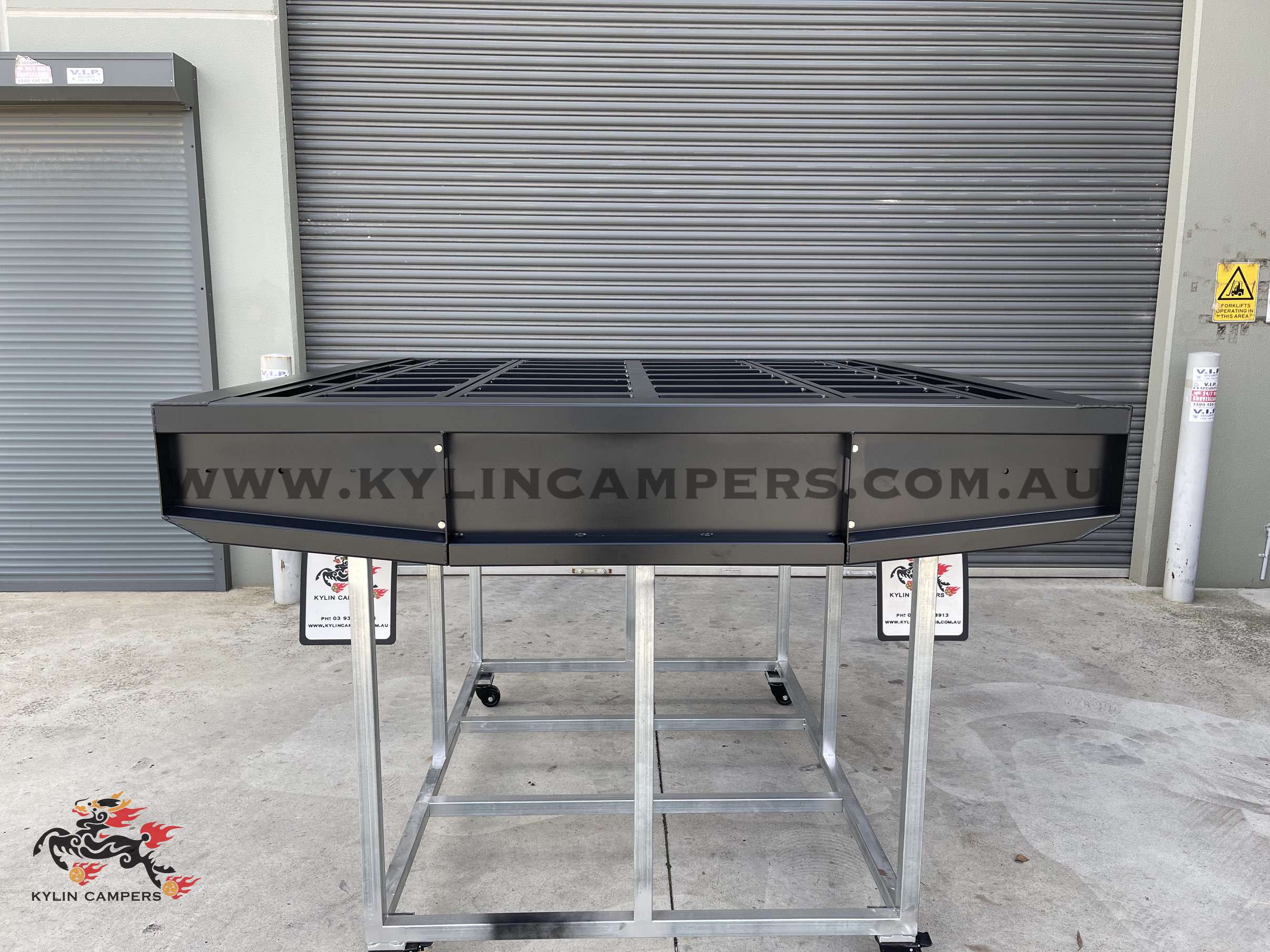

• Specially designed, laser cut & welded rear light panel with unique shape (made from 5052 flat alloy sheetmetal, not just from alloy tubes)
• Number plate bracket can be supplied (when you have no trundle drawer)
• Provision for under tray drawer (optional for base model but included in package 1)
• Provision for under tray water tank (optional for base model and package 1)
• 100×50 High tensile aluminium C- channel as the main bearer
• Modular Aluminium extrusion system for accessories fitting
• TIG & MIG welded
• Steel chassis mount brackets (vehicle specific)
• Installation kits (bolts and nuts)
• Can be fitted to most dual cab utes including Toyota Hilux, Ford Ranger, Isuzu D-max, Mazda BT-50, Nissan Navara, Mitsubishi Triton

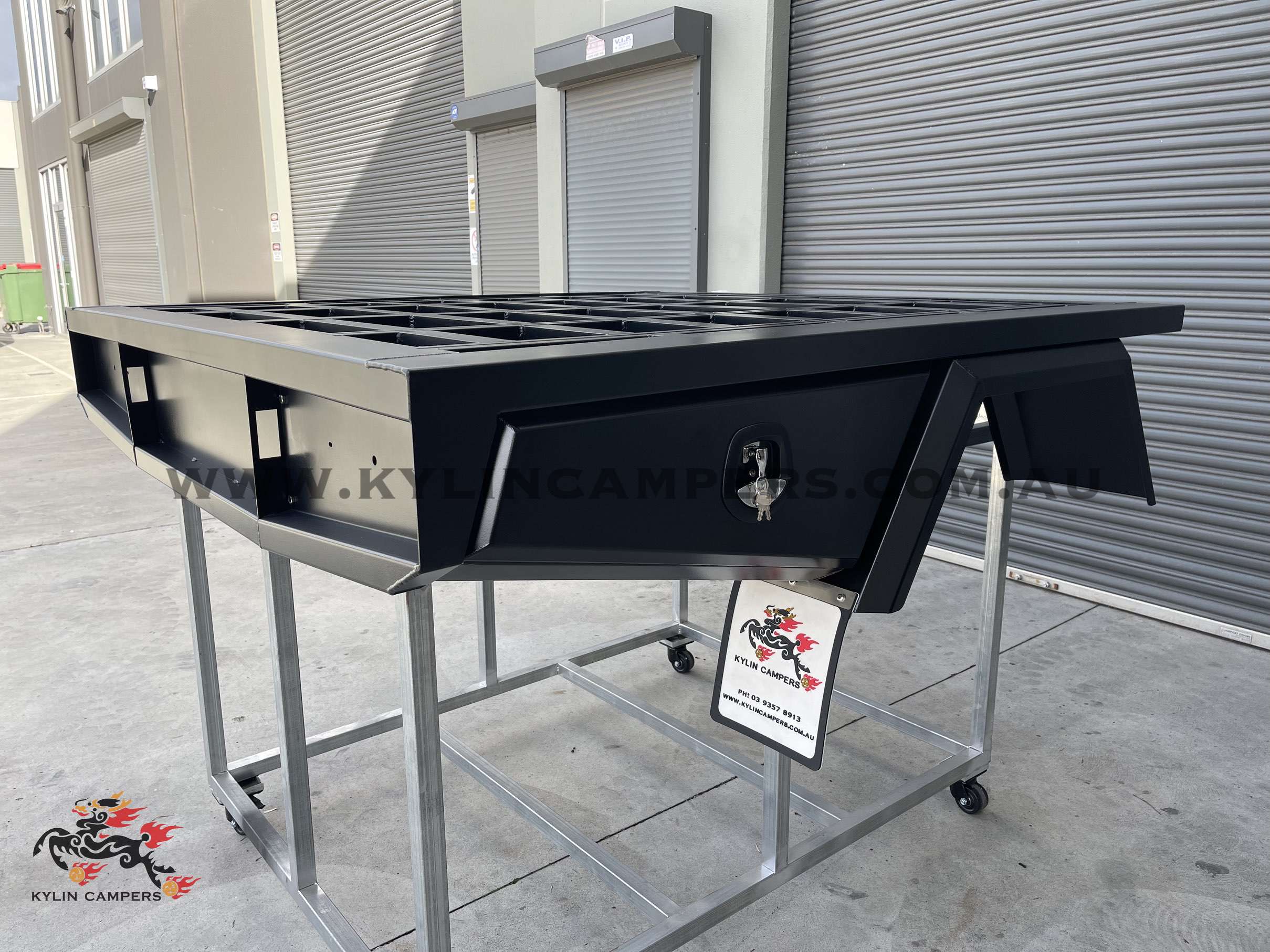

Unique Tray Frame Design:

A combination of marine grade alloy, aluminium SHS and aluminium extrusions as structural frame.

Full length aluminium extrusion from front to back, aerospace grade aluminium alloy, heavy duty and versatile.

Also Aluminium 3mm 6000 series alloy SHS & RHS running from left to right as structural frame.

The extrusions provide provisions for installing under tray accessories including water tank, trundle drawer, rope rail, mudguards and side toolboxes.

The extrusions provide strength for installed accessories and also structural strength for the whole tray.

Your under tray accessories are only bolted to those extrusions, unlike some other companies that only use alloy plates or tubes for the accessories.

This canopy base is designed to pair with our 1800L dual cab canopy or anything smaller.

See some custom built canopy & base examples:

https://www.kylincampers.com.au/gallery/custom-builds-davids-1500mm-chassis-mount/

https://www.kylincampers.com.au/gallery/custom-builds-lukes-1800mm-chassis-mount-canopy/

See example of 1800mm canopy base with 1650mm canopy:

https://www.kylincampers.com.au/gallery/standard-products-1800-mm-canopy-base-with-a-1650mm-canopy/

Standard Size:

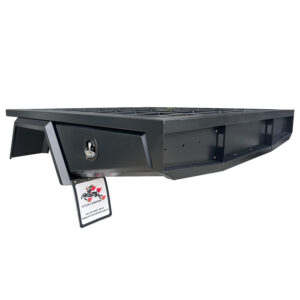

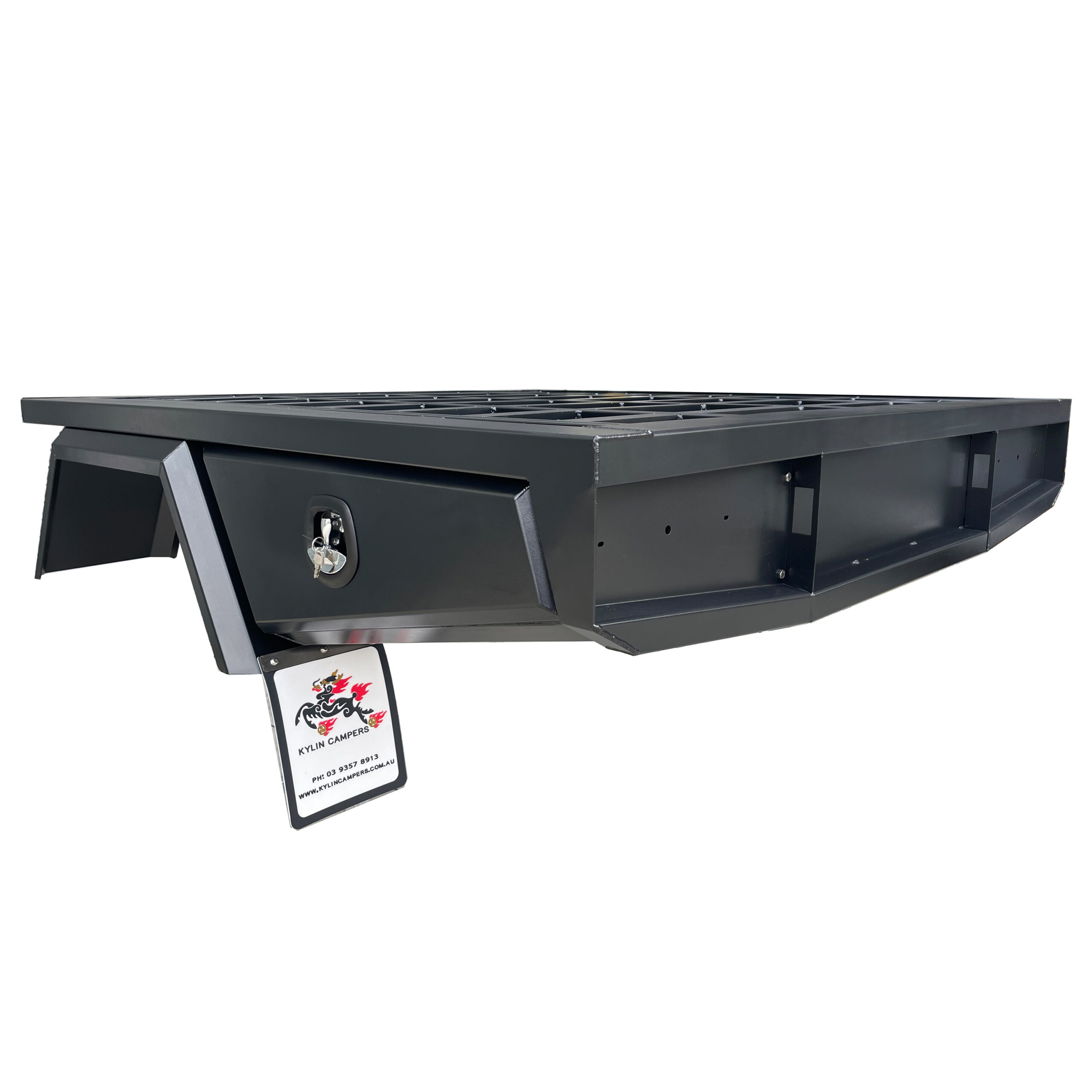

Dual Cab Canopy Base 1800L x 1800W

Model: KC-DC1800BCB

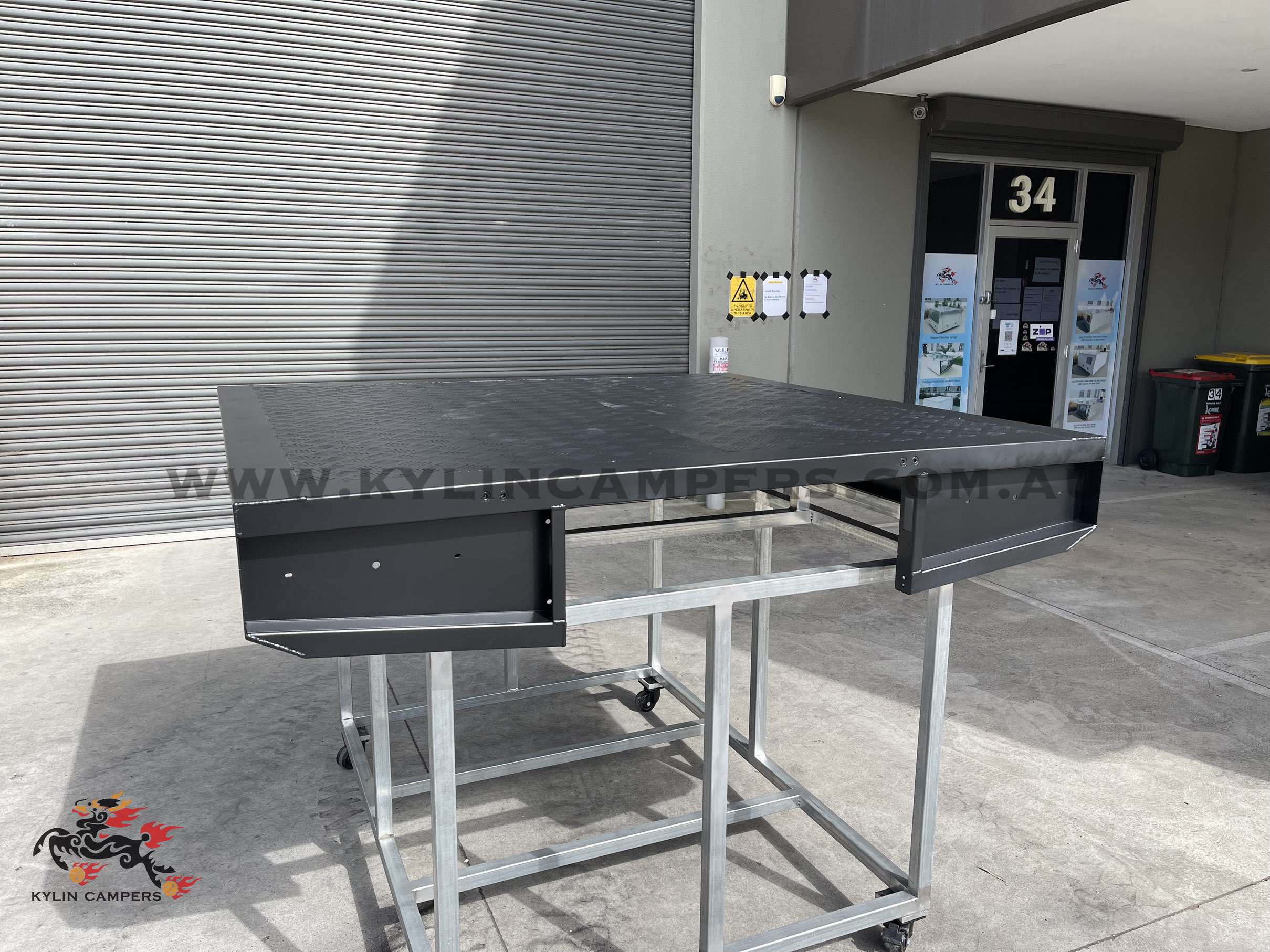

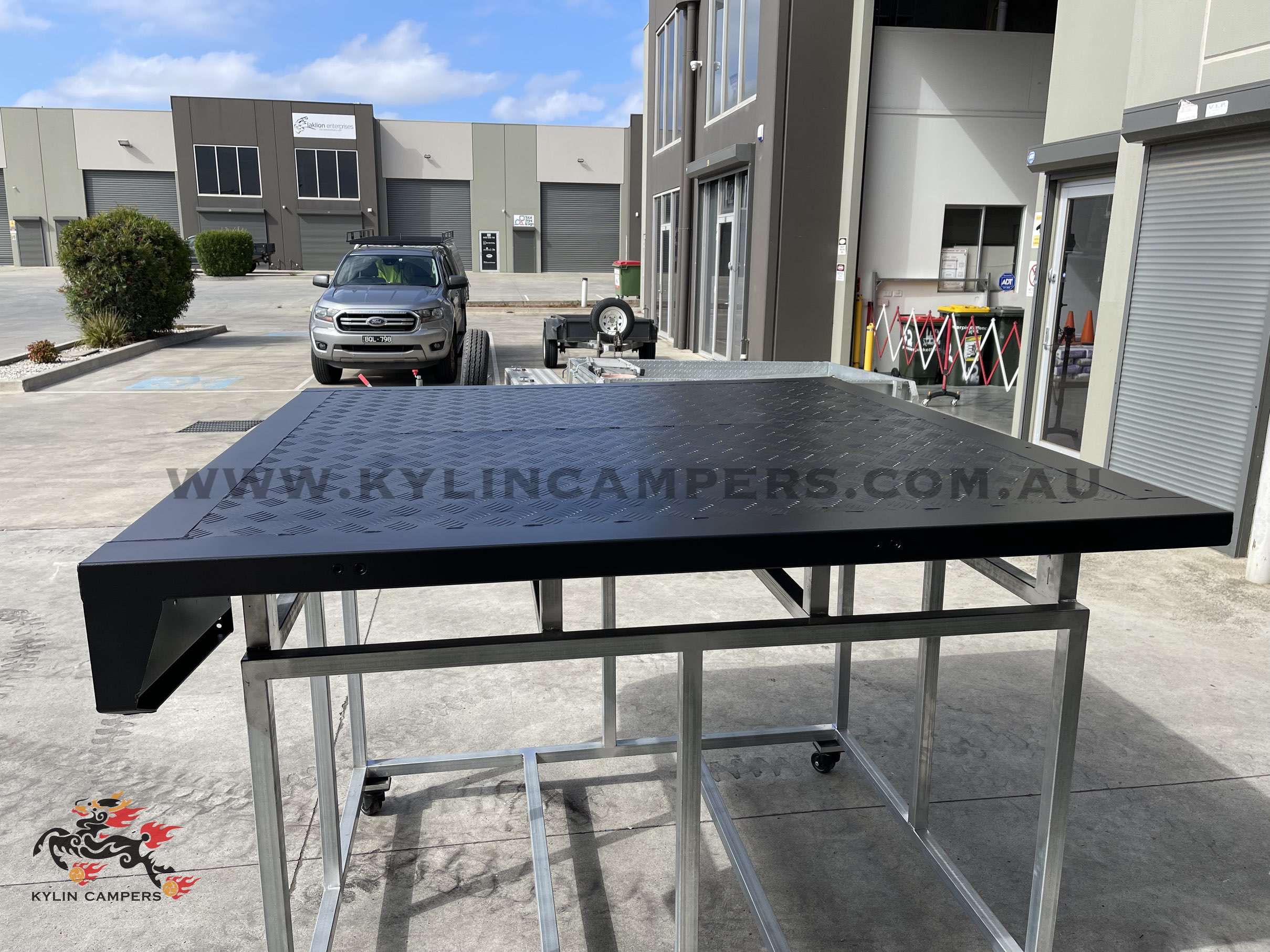

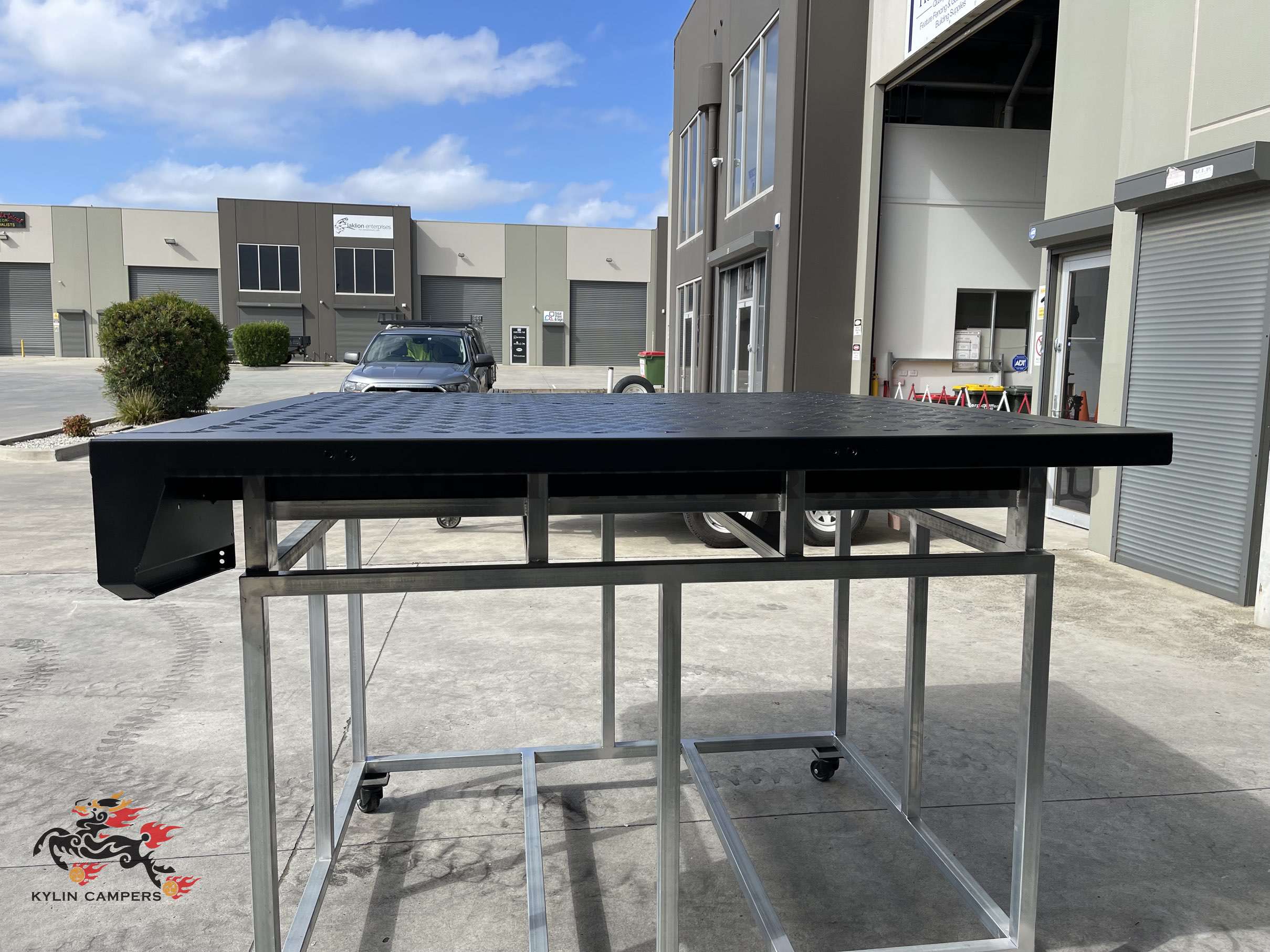

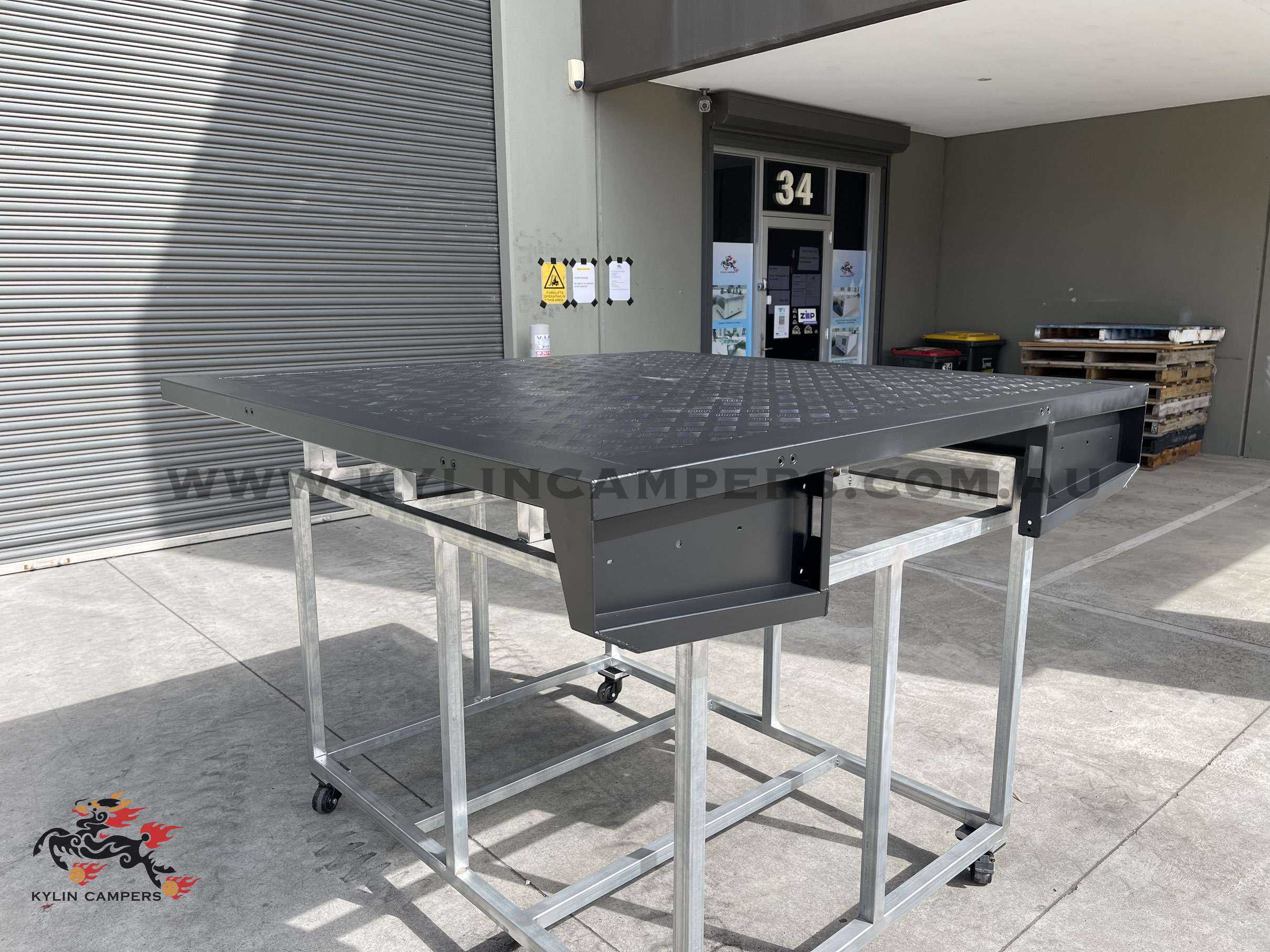

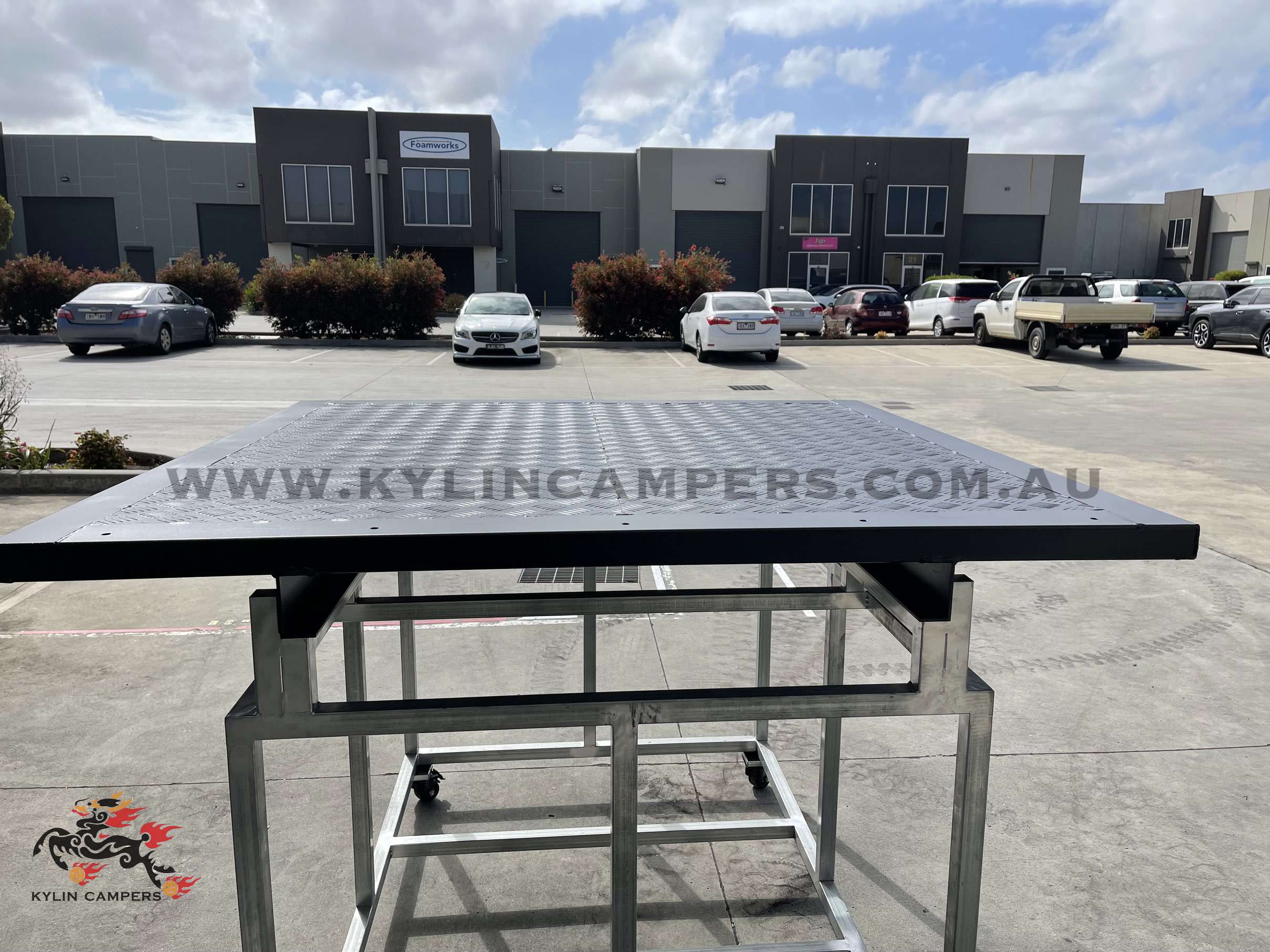

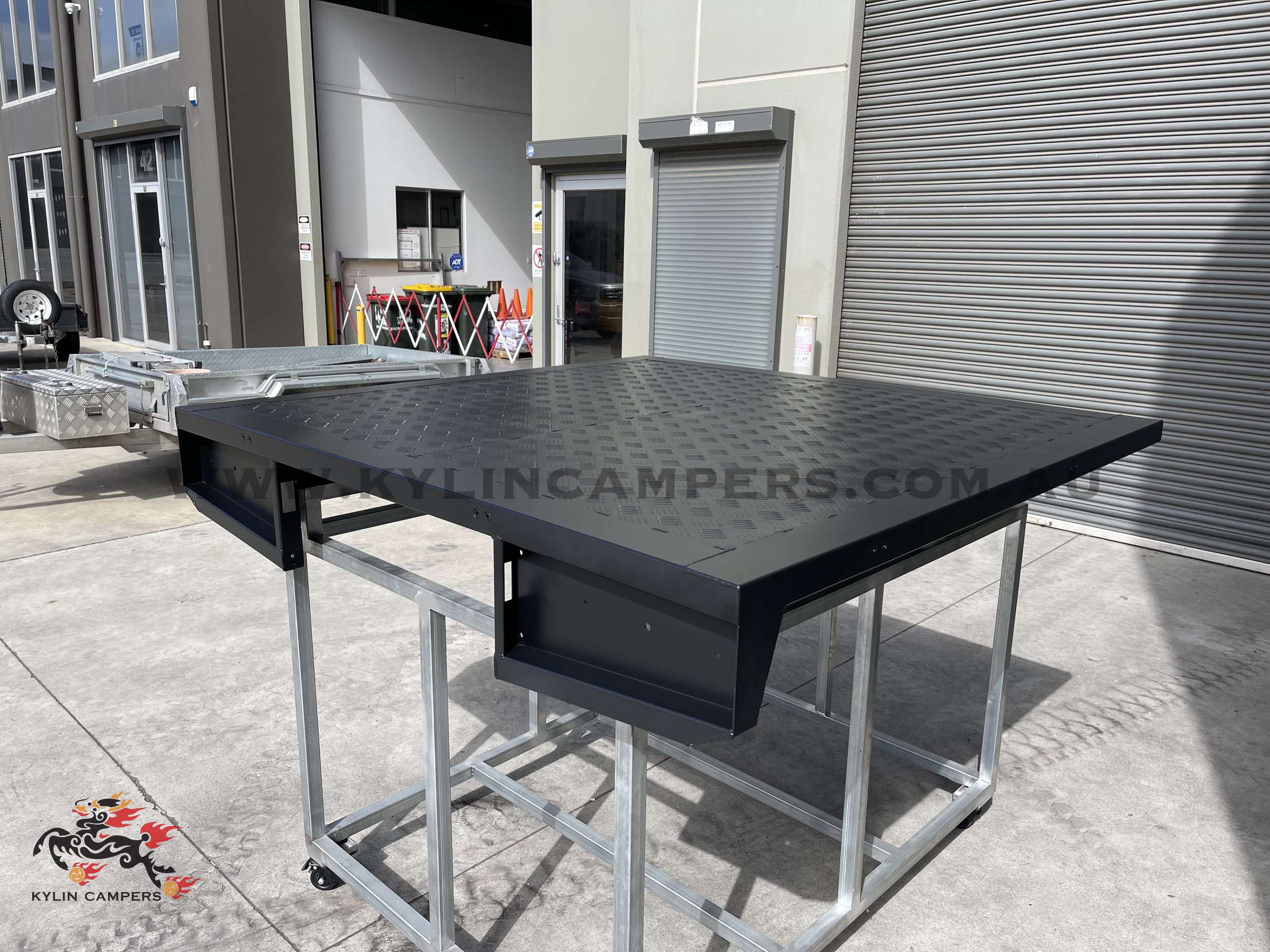

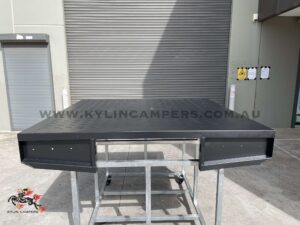

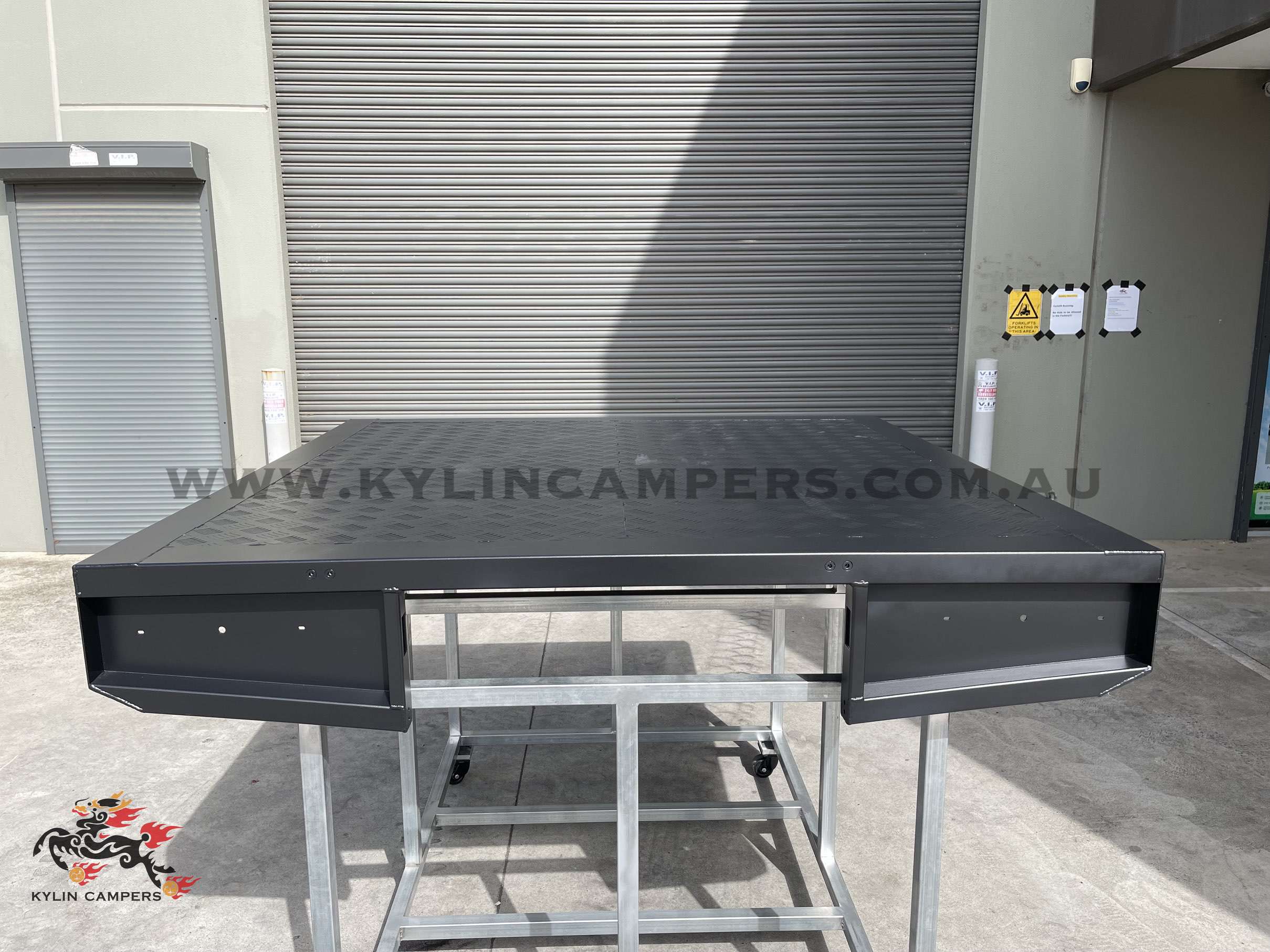

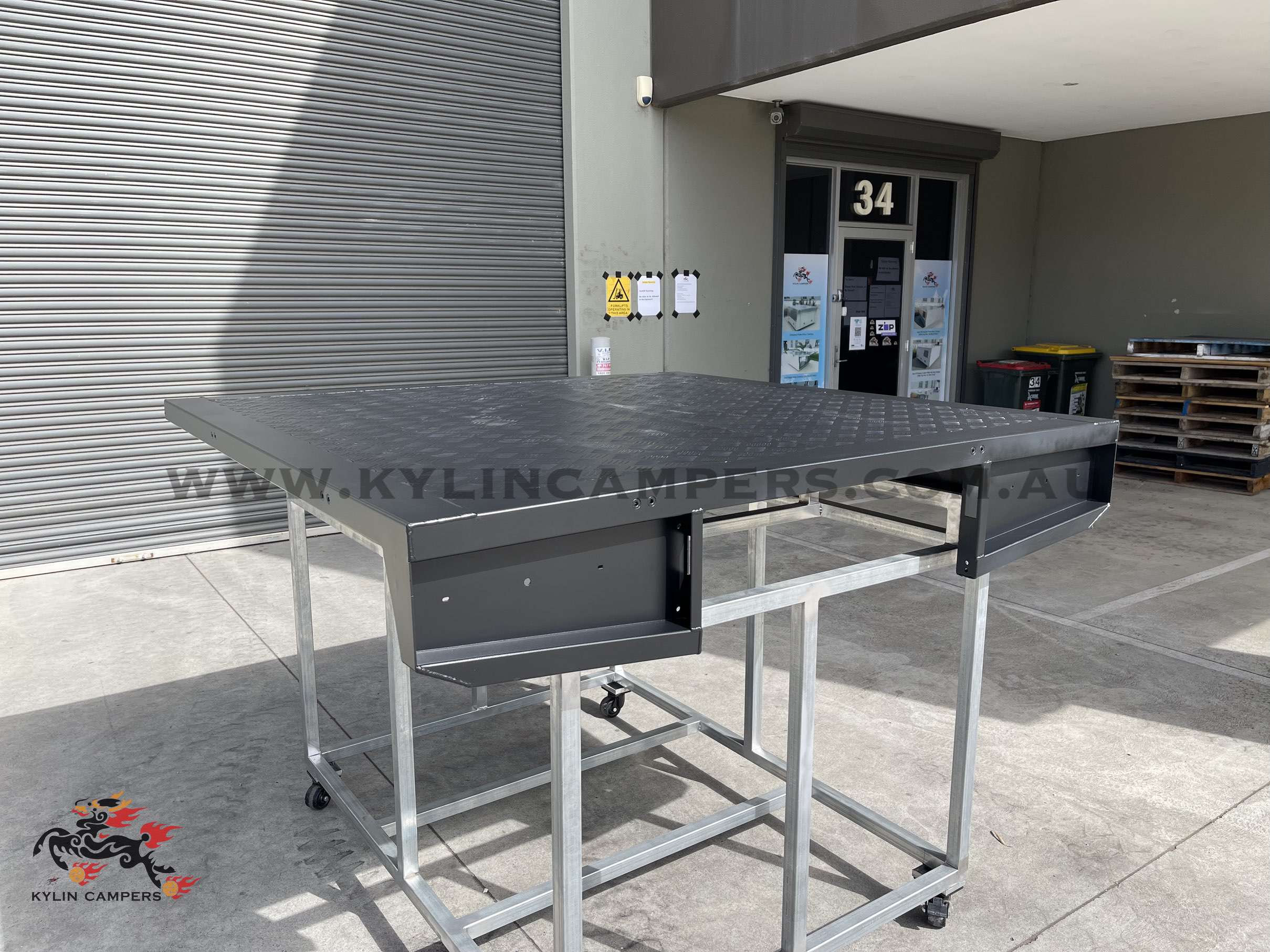

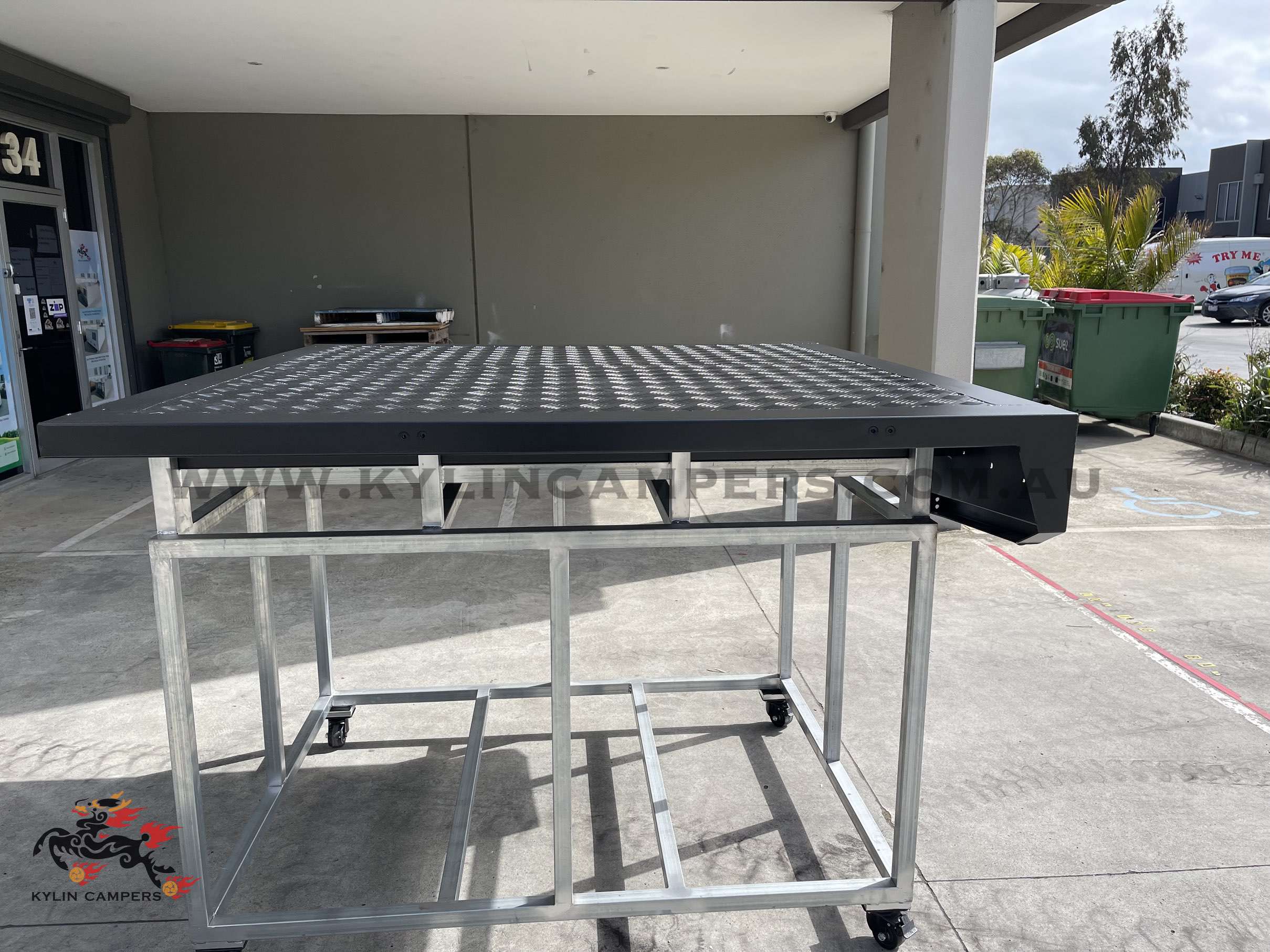

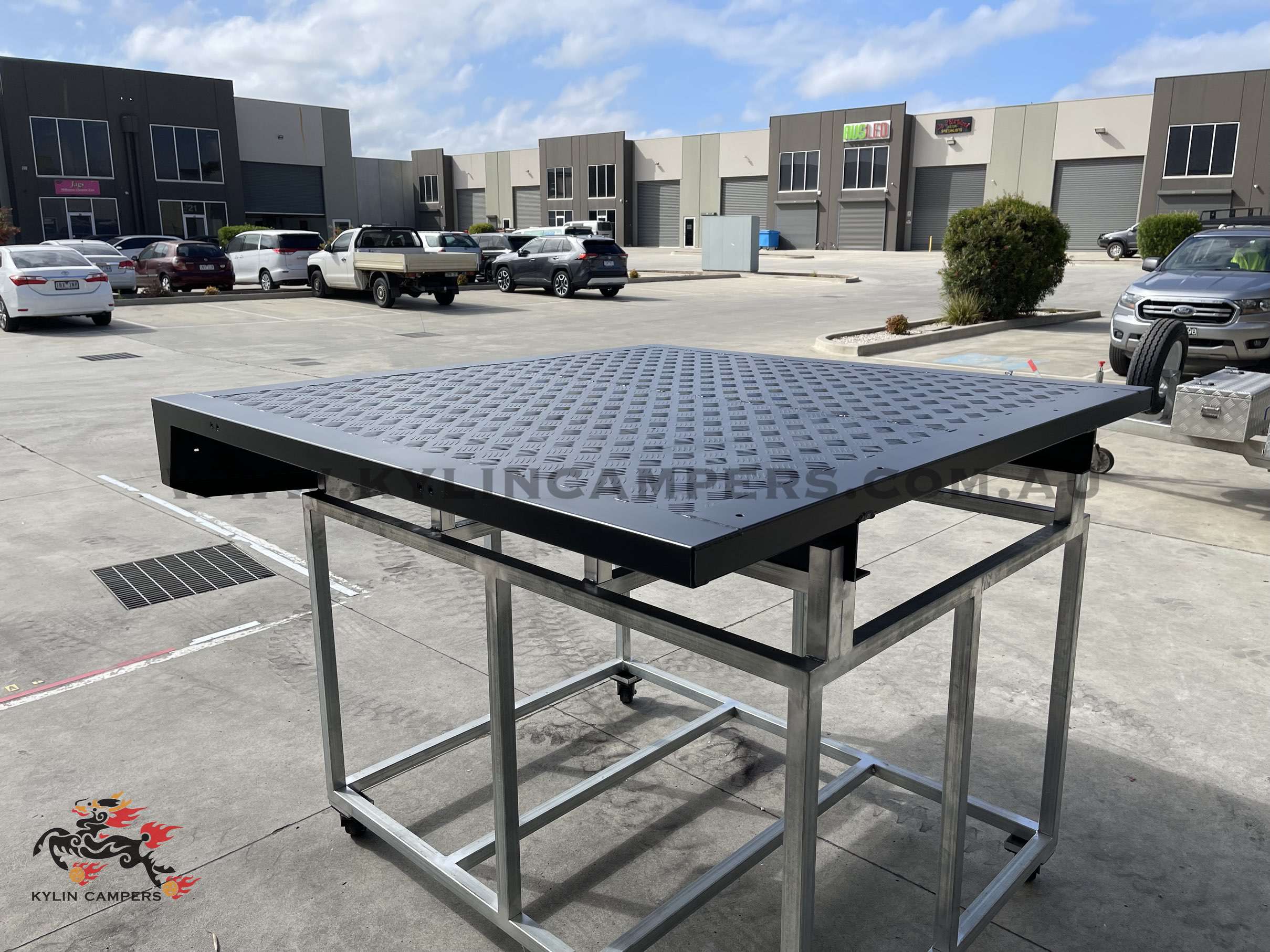

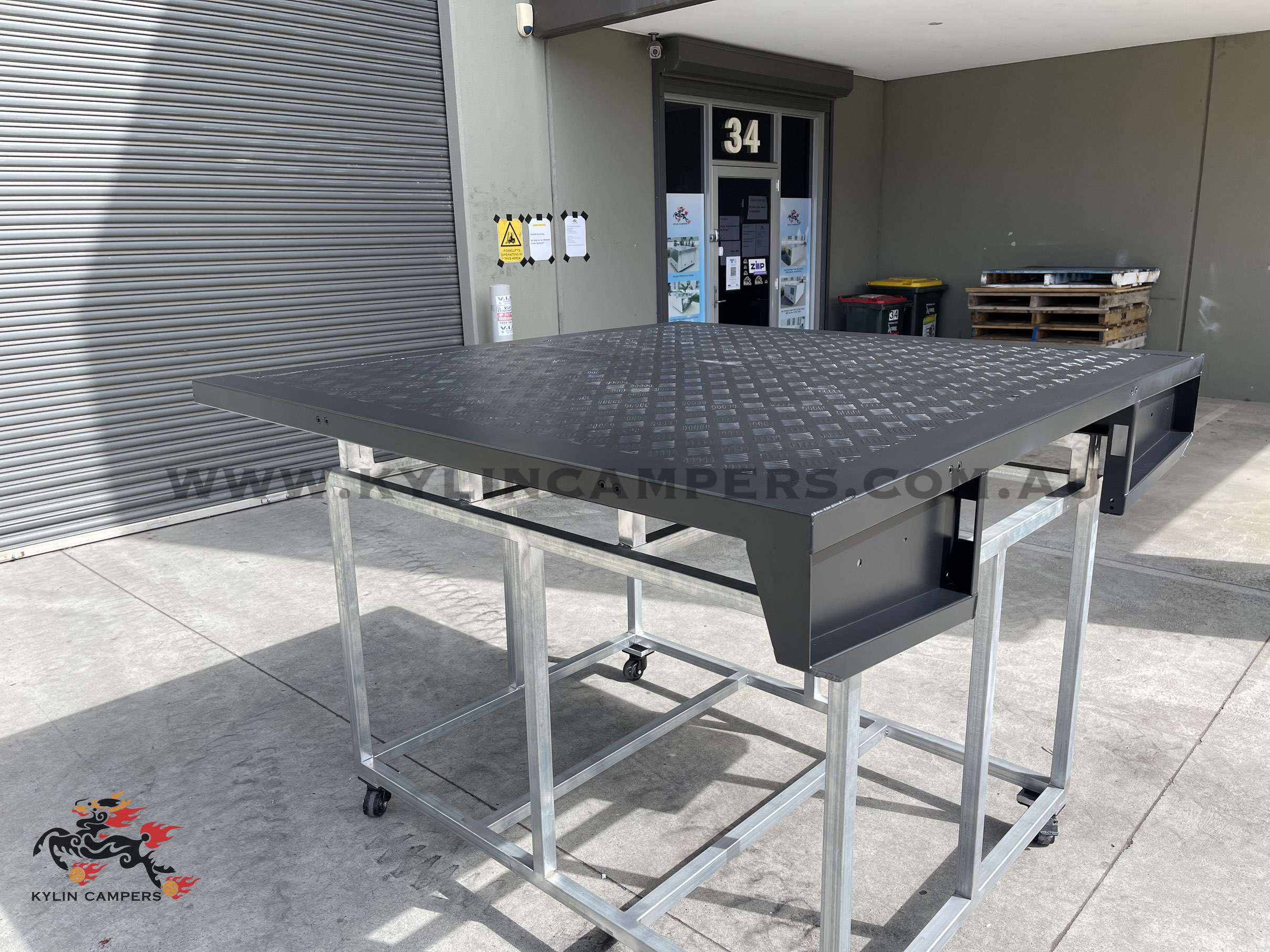

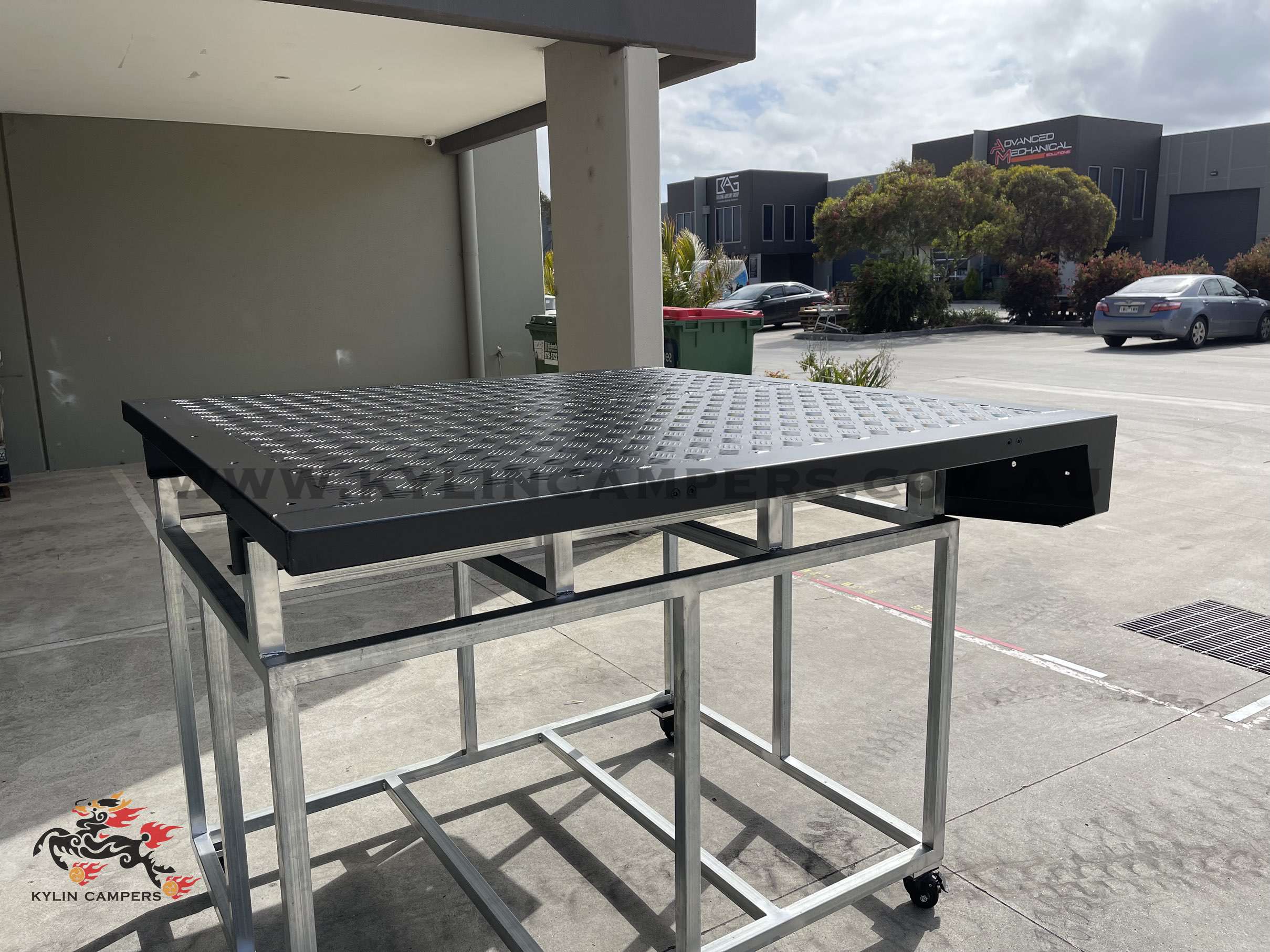

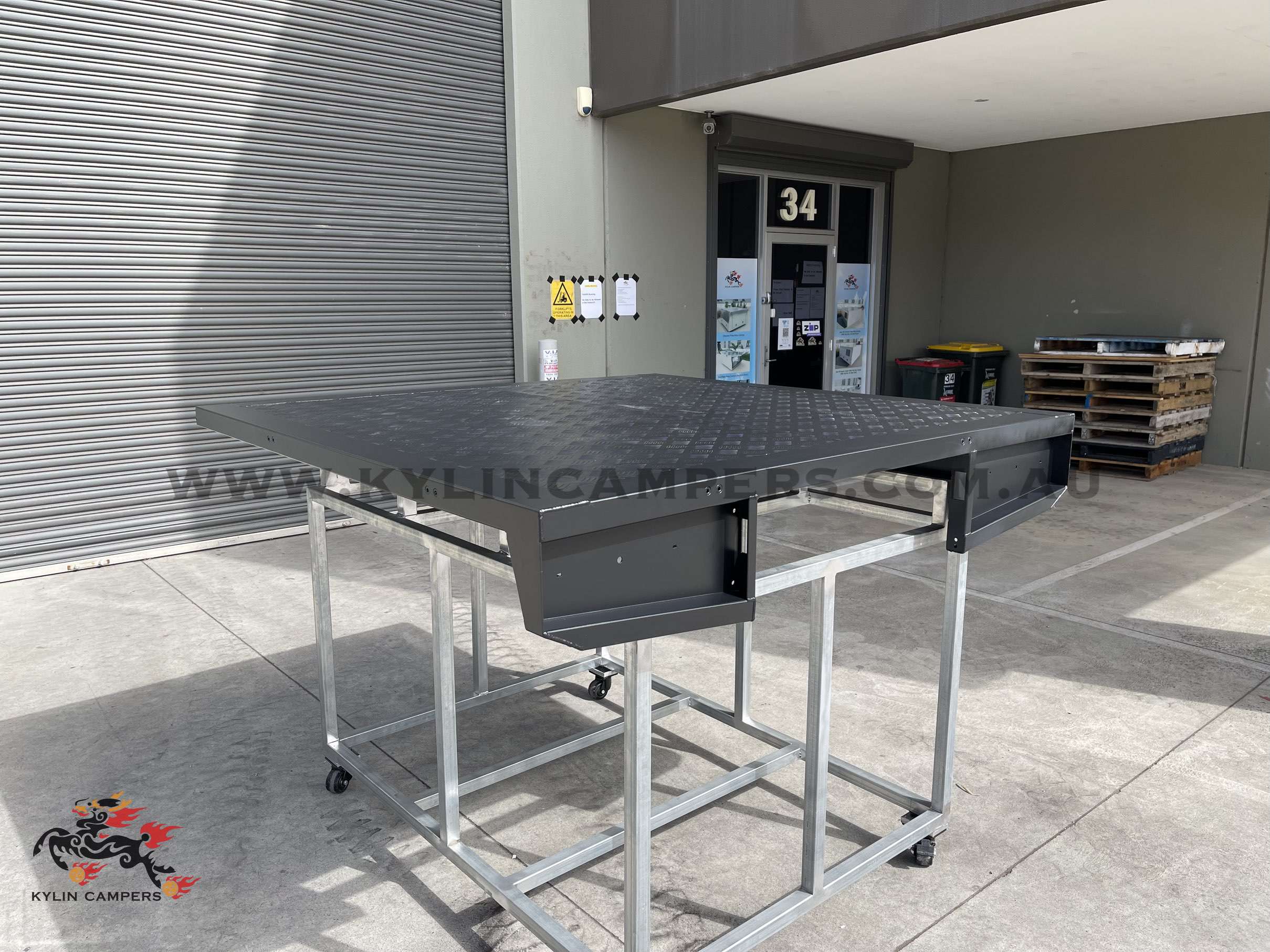

Please note: different from the pictures, all of our canopy base are upgraded with checker plate floor on top

Weight: 93kg (flat deck, without any accessories. The estimated weights with accessories are listed below in the packages.)

Pricing:

Base Model ( KC-DC1800BCB):

Available sizes:

1800 x 1800 mm LxW

Price: $2900 Inc. GST (Used to be $4050 Inc. GST)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Base Model:

Powder coated satin black except chassis mount brackets & installation kits

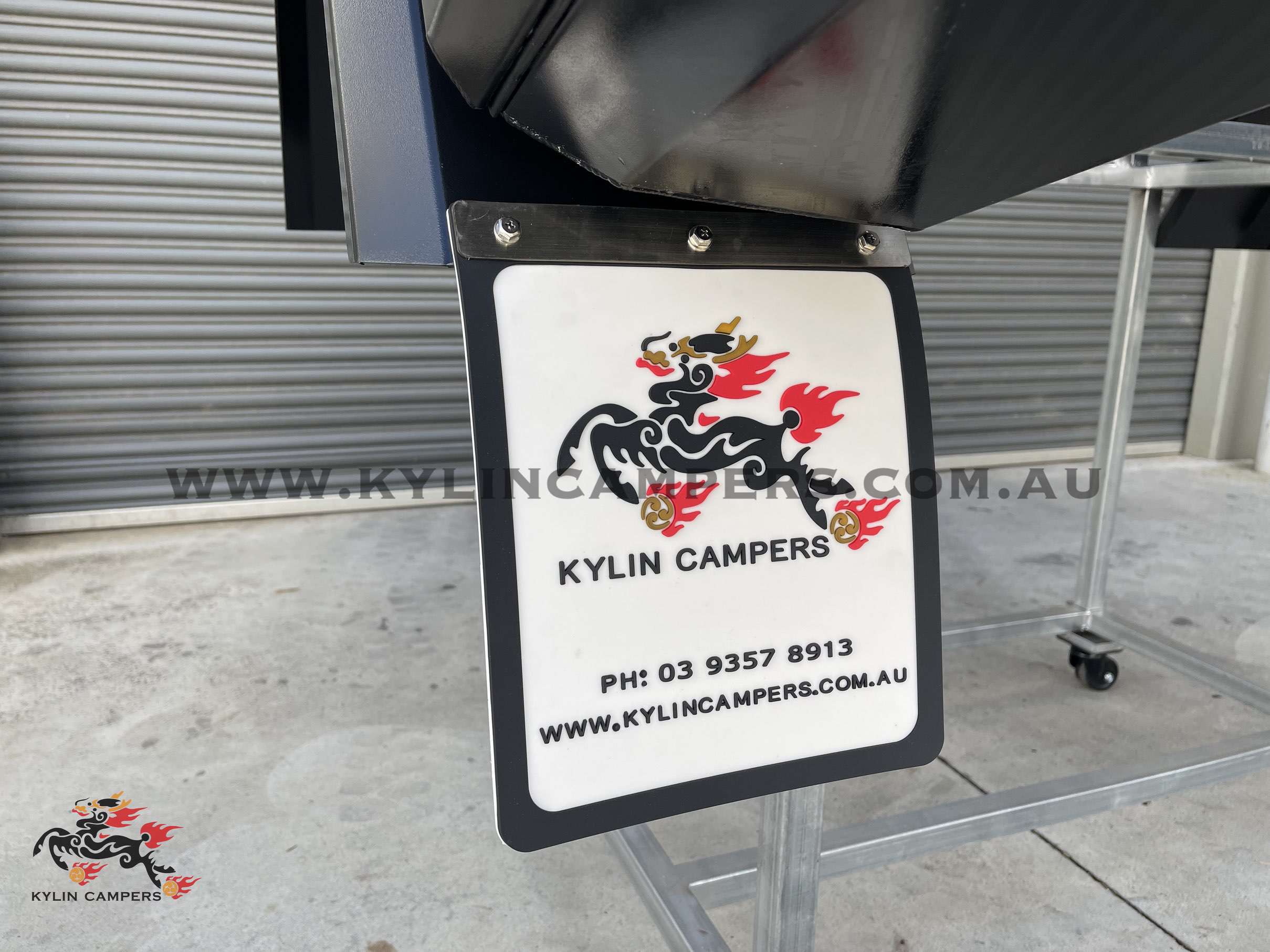

The tray, 2 x standard mudguards (with mudflaps), 2x 750mm Side Toolboxes (Single Tapered), rear number plate panel, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for parts in Base Model )

Approx. Total Weight (not including chassis mount brackets): 129.5 kg

Full Canopy Base Package 1 (KC-DC1800BCB-1)

Available sizes:

1800 x 1800 mm LxW

Price: $4300 Inc. GST (used to be $5850 Inc. GST)

(Please note that this price is supply only, not including assembly, installation and fitting)

Standard inclusions in the Full Canopy Base Package 1:

All powder coated satin black except chassis mount brackets & installation kits

Including the tray, 2x mudguards & mud flaps, 2x 750mm tapered toolbox, 1200mm long under tray drawer, 2x Maxilamp 385 series sequential LED with number plate lights, 1x fuel filler bracket, chassis mount brackets (3 pieces), installation kits (for parts in Full Canopy Base Package 1)

Approx. Total Weight (not including chassis mount brackets): 175.5 kg

You can also submit a quote form here:

https://www.kylincampers.com.au/ute-tray-quote/

Optional extras:

1. Upgrade 750mm Side Toolboxes to 880mm Side Toolboxes (a pair): $100
2. Upgrade the drawer from 1200mm to 1500mm: $200
3. Stainless steel drawer bench for under tray drawer: $200
4. 37L Water tank , 300x740x180mm (not including hoses & tap): $300
5. 57L water tank , 450x740x180mm (not including hoses & tap): $350
6. Upgrade to 900mm rope rail (the side toolboxes will be changed into rope rail version): $200
7. Upgrade to full length rope rail (the mudguards and toolboxes will be change to rope rail version): $300
8. Camera and sensor relocation kit: $250
9. Patch lead/wiring replacement suitable for for Hilux, D-Max, Nissan Navara, Ford Ranger MY22, etc., : $200.0 /Ute car

Please Note:

Fitting, Freight are not included in the price.

For our optional accessories under the tray, please check the dimensions of the accessories carefully to make sure that they will fit with your UTE truck and meet with your specific need.

If you or your fitters need to modify our standard accessories in order to fit with your specific UTE truck properly, you need to pay for the fittings/installations, and you need to pay for the modification costs by yourself too.

For example: Cutting is required to fit in your undertray accessories or mudguards if necessary.  Mudguard locations will have pre-drilled holes but cutting on the mudguards is required to fit properly. Installation fitting kits will be provided when you choose the options. We recommend using a local fabricator/fitter for installation in your region.

Bolts & Nuts may loosen after the first few kilometers of use and must be checked and re-tightened if necessary, check bolts & nuts regularly to avoid any trouble.

Freight & Insurance:

We ensure that your items are packaged correctly, we will not be liable for any damage in transit unless transit insurance has been purchased by yourself. You need to arrange your own transport/freight and transit insurance at your own costs.
